Description

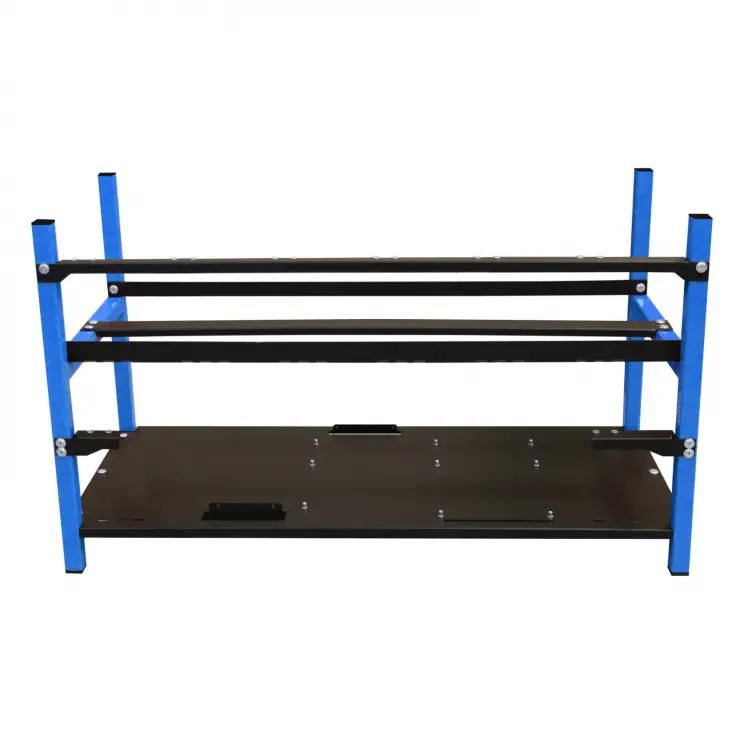

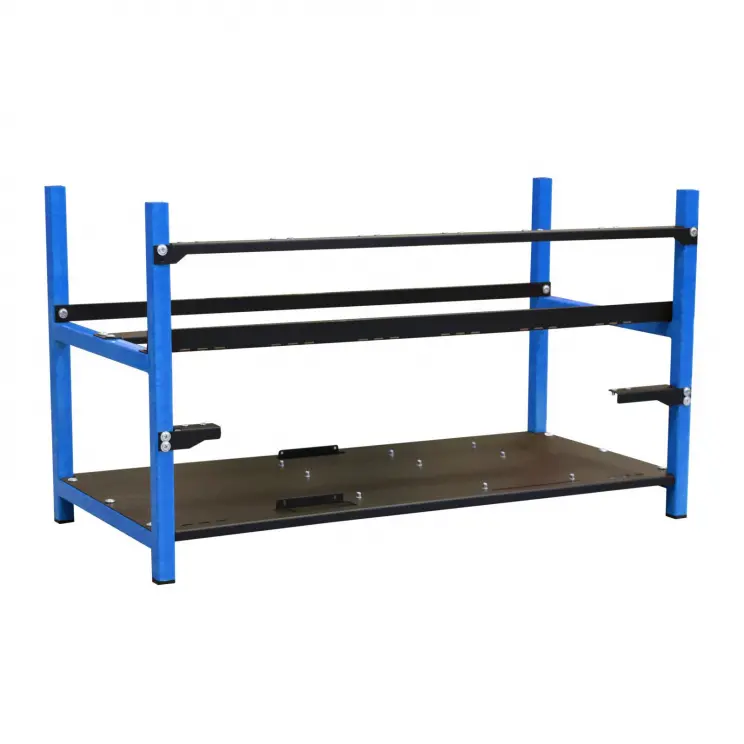

Akyga® AKM082 mining rig frame is an optimized version of the AKM081 model. The new, revised construction makes its assembly much simpler. On the other hand, the rig frame is noticeably smaller, which makes it more adjustable. What’s more, the product provides place for up to 8 large graphics cards with their own cooling system. The space requires for the installation of additional fans can thus be omitted. Nevertheless, the frame ensures a free air flow and thus provides excellent cooling for mounted components. Another advantage is that the cables form power supply can be shorter. Thus, there is no need to for extension power cables for the graphics cards.

The case has been designed to accommodate not only 8 graphics cards with a length of up to 340 mm but also one ATX power supply and a mainboard. Therefore, it is an ideal product not only for building a miner for various types of cryptocurrencies such as Bitcoin, Ethereum, Tether, or Ripple, but also for expanding professional graphics stations.

Rig frame dimensions:

  •  Length: 70 cm
  •  Width: 33 cm
  •  Height: 41 cm

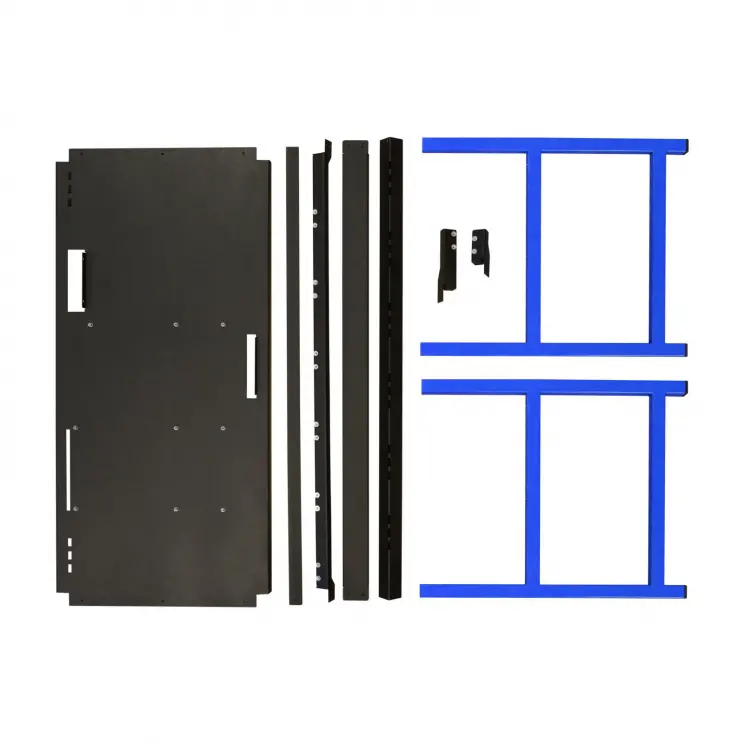

The kit includes a set of self-drilling screws to screw the case together by yourself and a switch for the motherboard. Furthermore, the set does not include the motherboard, risers, graphic cards or screws for their installation.


Features
  • Product code AKM082
  • Product type Mining frame
  • Motherboard compatibility ATX
  • Drive bays 2.5" 1 pc
  • Riser shelf Yes
  • Number of GPU stands 8 pcs
  • Number of power supply stations 1 pc
  • Maximum graphic card length 340 mm
  • Sheet thickness 0.8 - 1.3 mm
  • Installed fans None
  • Spaces for additional fans None
  • Power supply unit included None
  • Material Powder-coated aluminium
  • Product color Black, blue
  • Package EcoBox
  • Product size (L x W x H) 700 x 330 x 410 mm
  • Package size (L x W x H) 730 x 390 x 75 mm
  • Net weight 5.5 kg
  • Gross weight 6.05 kg
  • Included accesories Allen screws, button I/O
  • EAN code 5901720136909
  • Warranty 24 months
