Useful materials
  • Compatibility the charger is compatible with all electric cars equipped with Type2 connector
  • LCD display shows information about the current state of charging, allowing constant insight into the work of the device and its parameters
  • Current adjustment  allows to change the current to: 6, 8, 10, 13 and 16 A, depending on the needs and possibilities of the electrical installation
  • Resistance the device is characterized by high resistance to mechanical damage due to falling or pressure
  • Convenience a five-meter cable and a handle on the back of the housing facilitate hanging and using the device
  • Protections the product is equipped with a number of safeguards that guarantee trouble-free operation of the charger, and also protects batteries from overheating



Features
  • Product code AK-EC-12
  • Product type Electric Car Accessory
  • Hole for padlock No
  • Supply voltage 240-450 V / 50/60 Hz
  • Number of phases 3 phase
  • Maximum current 16 A
  • Maximum power 11 kW
  • Ground wire Yes
  • Flame resistance UL94V-0
  • IP Rating IP54
  • OVP Yes
  • OCP Yes
  • OPP Yes
  • OTP Yes
  • SCP Yes
  • Cable length 5 m
  • The cable plug #1 CEE 5pin (IEC 60309)
  • The cable plug #2 Type2
  • Wire gauge 5 x 2.5 mm2 + 2 x 0.5 mm2
  • Isolation material TPE
  • Material ABS
  • Product color Blue
  • Display Yes
  • MTBF 10000 h
  • Temperature -30 / +50 °C
  • Package Protective bag
  • Product size (L x W x H) 5000 x 150 x 85 mm
  • Package size (L x W x H) 380 x 380 x 100 mm
  • Net weight 3.05 kg
  • Gross weight 3.4 kg
  • CE compatibility Yes
  • FCC compatibility Yes
  • RoHS compatibility Yes
  • REACH compatibility Yes
  • Included accesories AK-AC-02
  • EAN code 5901720136831
  • Warranty 24 months

Fast and safe charging of your electric car at home

Akyga® AK-EC-12 three-phase charger is a way to quickly charge an electric vehicle without exposing the electrical system to excessive overloads. The built-in Controlbox allows you to select the charging power according to the wires used in the installation. This means you don't have to invest in replacing the wiring in your garage.

Charging without limits

Connector
Type 2

400V Plug
CEE 5-pin

Rated current
6A / 8A / 10A / 13A / 16A

Charger length
5m

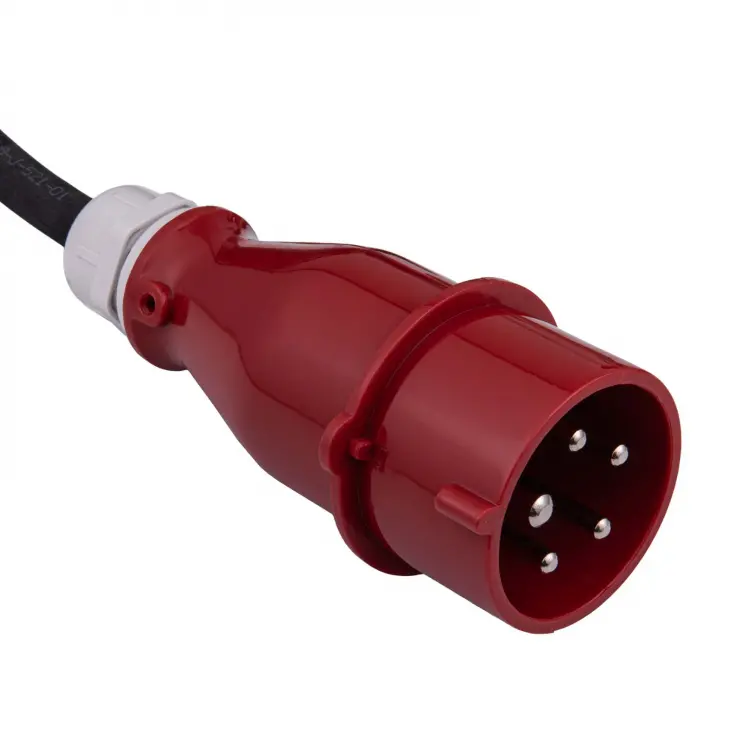

The long 5 m cable is terminated with two plugs. The first one has a Type 2 connector - declared as the standard for charging electric cars in Europe, while the second is equipped with a CEE 5-pin (IEC 60309) connector, which allows charging at 400 volts. The high quality of the cables used guarantees a stable connection when charging with the power of up to 11 kW. Therefore, you will charge your electrician quickly and without restrictions, using a power socket in your garage.

Information you need on the LCD display

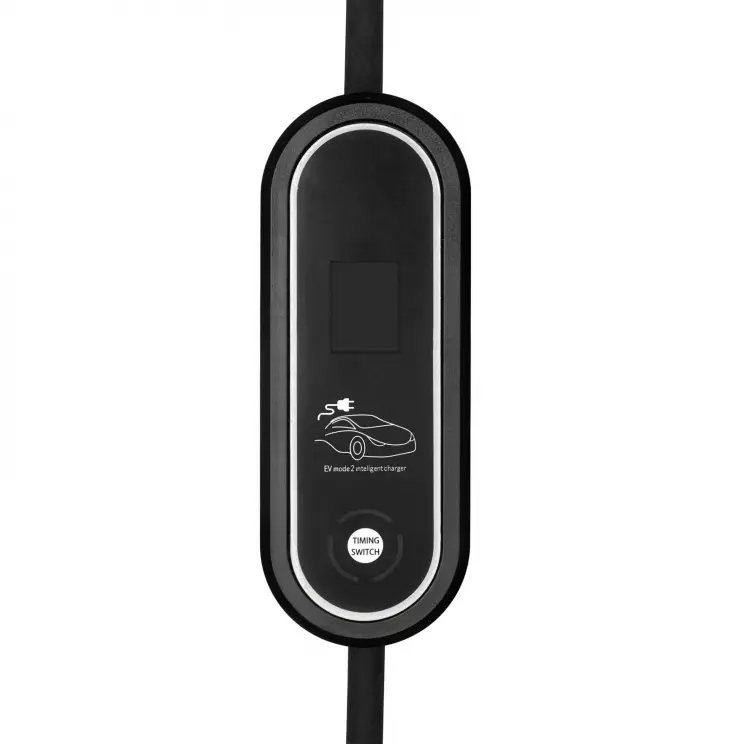

The charger has a control panel called ControlBox. It allows you to choose the current from: 6, 8, 10, 13 and 16 A, as well as setting the charging time limit from 1 to 10 hours. What is more, the ControlBox has a built-in LCD screen. It displays current charging parameters such as charging current and power, mains voltage, total energy consumed by the device, charger temperature and charging time.

Charging safety

The AK-EC-12 charger is basically a portable EVSE charging station. It has the most important functionalities found in wallbox stations. These are protections (OVP, OCP, OPP, OTP, SCP), which protect against, among others, excessive current and voltage, as well as overheating of the charger and the vehicle battery. They create the necessary protection for the power supply as well as the charged device. What's more, a handle has been included on the back of the case. It is used to hang the device e.g. on a garage wall, significantly reducing the risk of damaging ControlBox.

Overcurrent protection. The charger will switch off if it detects an overload of the stabiliser.

Thermal protection protects against overheating of the power supply, which could result in damage.

Protection against overvoltage at the charger's output. Protects the device being charged from damage.

The built-in temperature sensor in the plug ensures safety and protects against the consequences of overheating the battery in the car. Thanks to a suitable controller, the device regulates the parameters so as to maintain the optimum temperature during the charging process.

Maximum durability

Fire resistance
UL94V-0

Adjustment
current

Degree of protection
IP54

Resistance
2t

In addition, the charger has been designed to withstand the harsh conditions specified by the IP54 sealing class. The materials from which it is made are extremely durable and resistant. Therefore it is not threatened by dirt or splashing. In addition, the plug has been protected by a plug, which protects the contacts against flooding or accidental damage.

Comfortable cover

Each charger comes with a convenient carrying case. The bag makes storage easier and ensures the safety of the EV cables.

The product is suitable for charging the batteries of electric cars, such as:

  • Audi A3 e-Tron
  • BMW i3
  • BMW i8
  • Chevrolet Spark
  • Hyundai Kona
  • IONIQ
  • Kia Niro
  • Mercedes B Klasa E-Celi
  • Mercedes S500 PHEV
  • Mercedes SLS EV
  • Mercedes Vito E-Cell Van
  • Nissan Leaf
  • Peugeot e-208
  • Porsche Panamera S PHEV
  • Renault Zoe
  • Tesla Model 3
  • Tesla Model S
  • Toyota Prius Plug-In
  • Volkswagen e-Up
  • Volkswagen e-Golf
  • Volvo V60 PHEV
  • VW ID.3
