Description

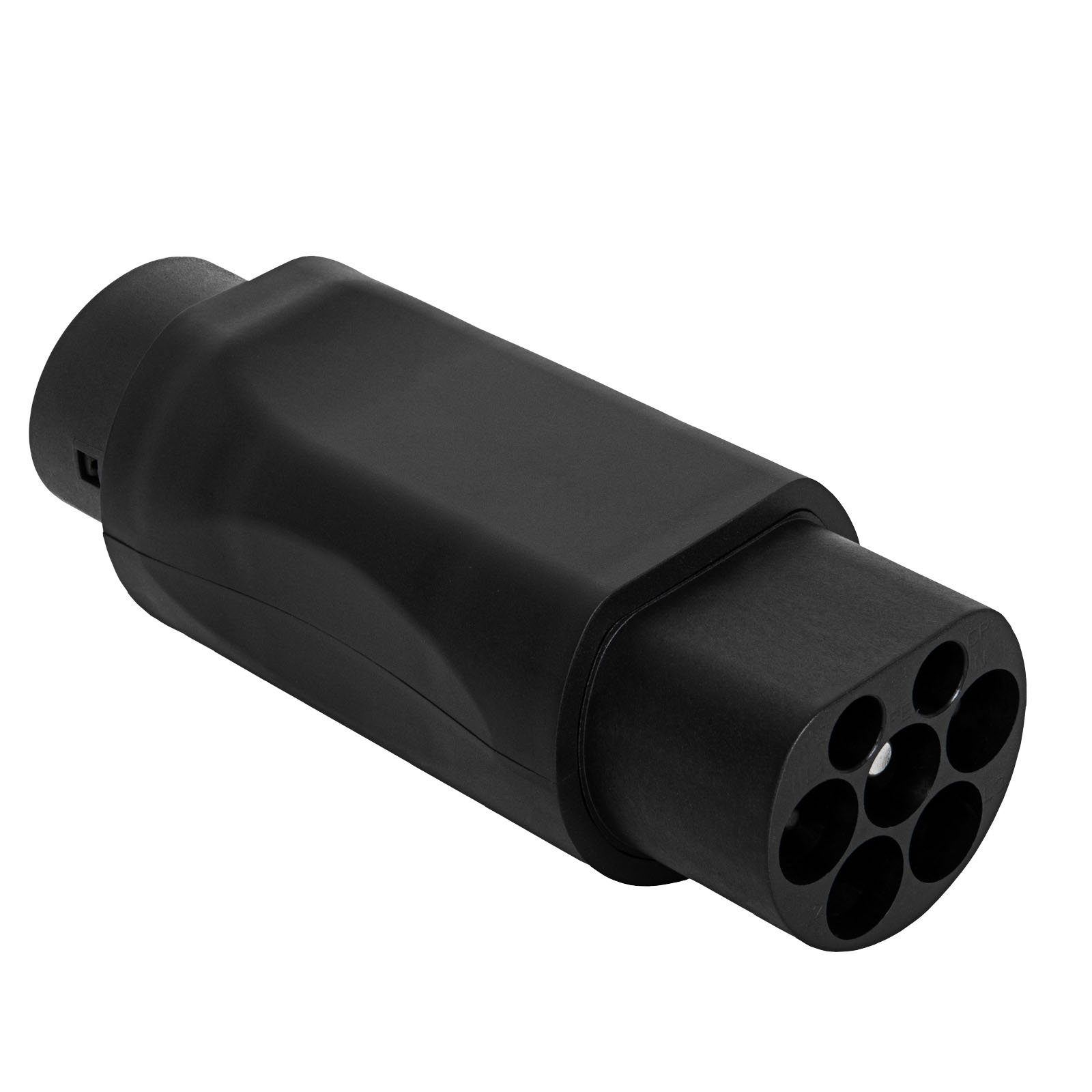

The Akyga AK-SC-E08 adapter is used to convert a Type 2 connector to Type 1. On one side of the adapter is a standard Type 2 socket, which fits most EV chargers found at public charging stations in Europe. At the other end, there is a Type 1 plug, which can be used to charge an EV with the J1772 socket, which is found on older cars and those imported from overseas. What is more, the adapter is made of high-quality materials that guarantee its long service life and trouble-free operation.
Features
- Product code AK-SC-E08
- Supply voltage 250 V
- Number of phases 1 phase
- Maximum current 32 A
- Maximum power 8 kW
- Flame resistance UL94V-0
- IP Rating IP55

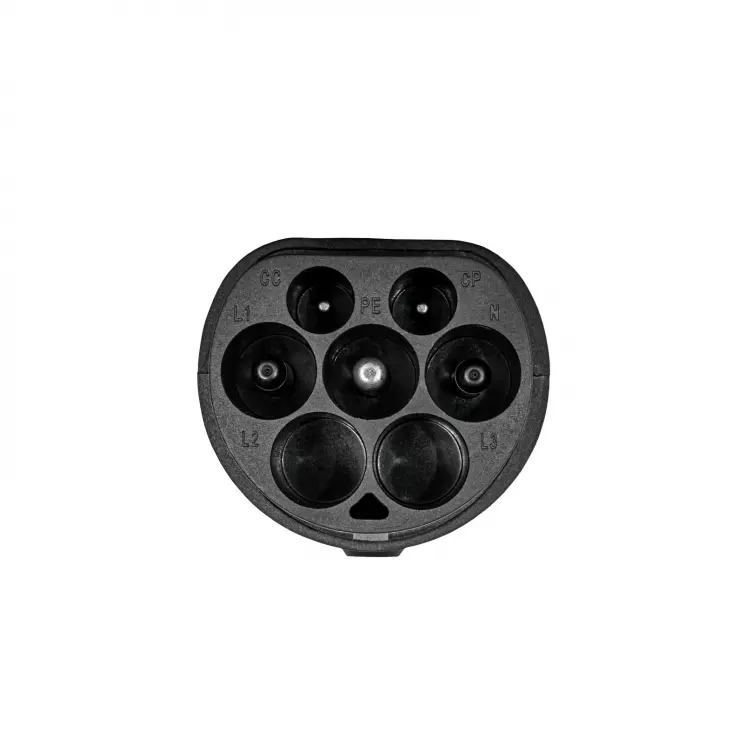

- The cable plug #1 Type 2 (IEC 62196-2) Male Connector
- The cable plug #2 Type 1 (J1772) Female Connector
- Plated plugs Silver
- Material TPE
- Product color Black
- Temperature -30 / +50 °C
- Package Carton box
- Product size (L x W x H) 59 x 61 x 163 mm
- Package size (L x W x H) 72 x 72 x 180 mm
- Net weight 291 g
- Gross weight 334 g
- CE compatibility Yes
- RoHS compatibility Yes
- REACH compatibility Yes
- EAN code 5901720137821
- Warranty 24 months
