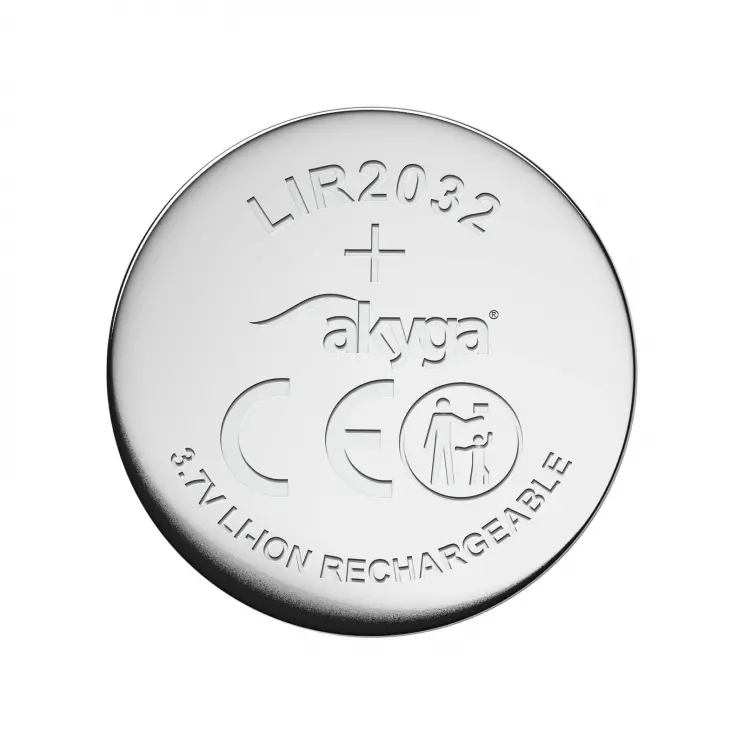

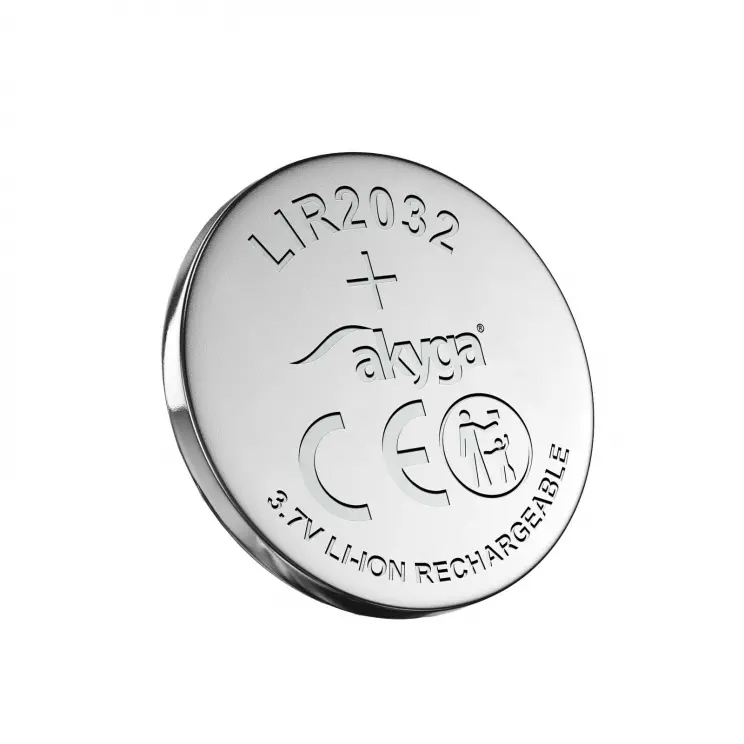

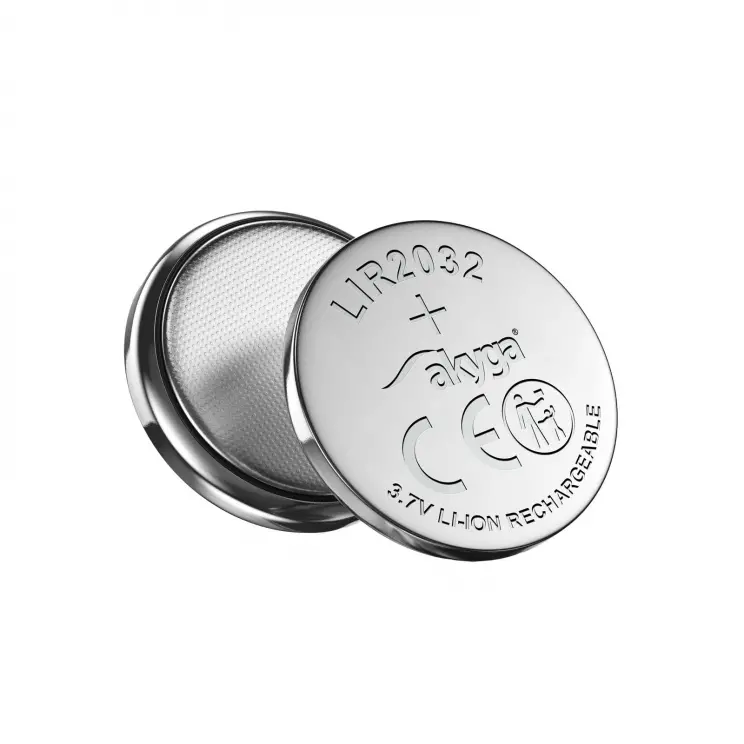

Akyga® AKY1707 is a compact lithium-ion LIR2032 battery from the UltraCoin series, designed for devices requiring maximum reliability in a minimal form. The LIR2032 cell provides 3.7 V and 70 mAh capacity, providing a stable power source for modern, energy-efficient electronic systems.
Small battery — big power
With a diameter of 20 mm and a thickness of 3.2 mm, the LIR2032 battery can easily be used in designs where every millimetre of space counts. It is ideal for miniature remote controls, IoT sensors, electronic watches, GPS locators and wearable devices, where long-term operation and low weight are important.
The reliability of lithium-ion technology
The lithium-ion cell ensures long life, low self-discharge and no memory effect, allowing for repeated charging without loss of capacity. This makes the Akyga® AKY1707 LIR2032 battery an excellent solution for designers and users who value stability, performance and operational safety.
- Product code AKY1707
- Part number LIR2032
- Responsible Entity Ropla Elektronik HP Sp. z o.o., 52-200 Suchy Dwór, Wrocławska 1c, Polska/Poland, [email protected]
- Product type Lithium-Ion Battery
- Rated voltage 3.7 V
- Battery capacity 70 mAh
- Cell Type Li-Ion
- Thickness 3.2 mm
- Width 20 mm
- Height 20 mm
- Temperature -20 / +60 °C
- Package UniBag
- Product size (L x W x H) 20 x 20 x 3.2 mm
- Net weight 3.15 g
- CE compatibility Yes
- RoHS compatibility Yes
- MSDS compatibility Yes
- EAN code 5906574243957
- Warranty 24 months
