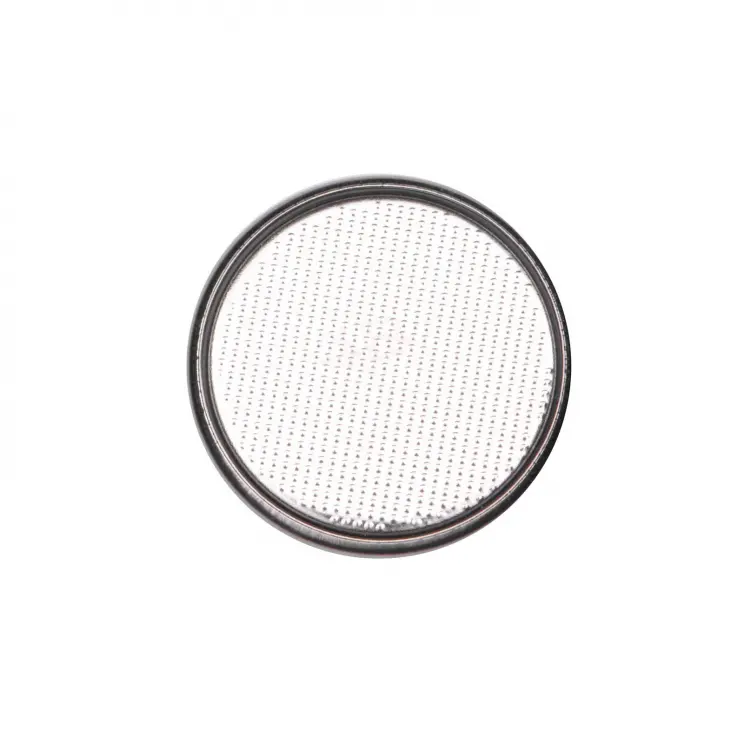

The Akyga® AKY1981 UltraCoin LIR2016 lithium-ion battery is a small but powerful cell designed for compact electronic devices. With a diameter of 20 mm and a thickness of only 1.6 mm, it is ideal for applications where every millimetre counts – from smartwatches to microelectronics and medical devices.
Power in an Ultra-Thin Form
Despite its ultra-thin design, the LIR2016 Li-Ion battery delivers a voltage of 3.7 V and a capacity of 22 mAh. This is sufficient to power small circuits, sensors, and other components that require stable voltage. The lithium-ion technology ensures low self-discharge, multiple recharge cycles, and no memory effect – all of which contribute to long-lasting and trouble-free operation.
Modern Applications in Miniature Format
Thanks to its compact size and reliable performance, the LIR2016 coin cell battery is ideal for use in smart bands, activity tracking systems, microsensors, and DIY projects. It is also a popular replacement in slim remote controls, electronic key fobs, and other compact portable devices.
- Product code AKY1981
- Part number LIR2016
- Responsible Entity Ropla Elektronik HP Sp. z o.o., 52-200 Suchy Dwór, Wrocławska 1c, Polska/Poland, [email protected]
- Product type Lithium-Ion Battery
- Rated voltage 3.7 V
- Cell Type Li-Ion
- Thickness 1.6 mm
- Width 20 mm
- Height 20 mm
- Temperature -20 / +60 °C
- Package UniBag
- Product size (L x W x H) 1.6 x 20 x 20 mm
- Net weight 1.8 g
- CE compatibility Yes
- RoHS compatibility Yes
- MSDS compatibility Yes
- EAN code 5906574243933
- Warranty 24 months
