Power Supply ITX AK-I1-200 200W

  • Product code AK-I1-200
  • Product type Computer power supply
  • Format Mini-ITX 1U
  • Series Pro
  • Supply voltage 230 V
  • Power consumption < 2 A
  • Efficiency > 70 %
  • 80 PLUS compatibility No
  • 80 PLUS certificate None
  • Current on the +3.3V rail 8 A
  • Current on the +5V rail 10 A
  • Maximum load on +3.3V and +5V line 76 W
  • Current on the +12V rail 10 A
  • Maximum load on 12V line 120 W
  • Maximum power 200 W
  • Power inlet IEC C14
  • Mainboard Power Connector 24-pin
  • Power connector ATX12V P4 1 pc
  • Power connector EPS12V 8 pin None
  • Power connector PCI-E 6 pin None
  • Power connector PCI-E 6+2 pin None
  • Power connector PCI-E 8 pin None
  • Molex connector 2 pcs
  • Mini-Molex connector None
  • SATA connector 2 pcs
  • PFC filter Passive
  • Mechanical switch None
  • Ground wire Yes
  • OVP Yes
  • OCP Yes
  • OPP Yes
  • OTP Yes
  • SCP Yes
  • UVP None
  • Fan size 40 mm
  • Fan adjustments Automatic
  • Cable length 40 cm
  • Power cable included No
  • Material Galvanized steel
  • Product color Grey
  • MTBF 100000 h
  • Temperature 5 - 50 °C
  • Package Foil
  • Product size (L x W x H) 150 x 81.5 x 40 mm
  • Package size (L x W x H) 211 x 101 x 41 mm
  • Net weight 580 g
  • Gross weight 587 g
  • CE compatibility Yes
  • FCC compatibility No
  • RoHS compatibility Yes
  • REACH compatibility Yes
  • EAN code 5901720132147
  • Warranty 24 months

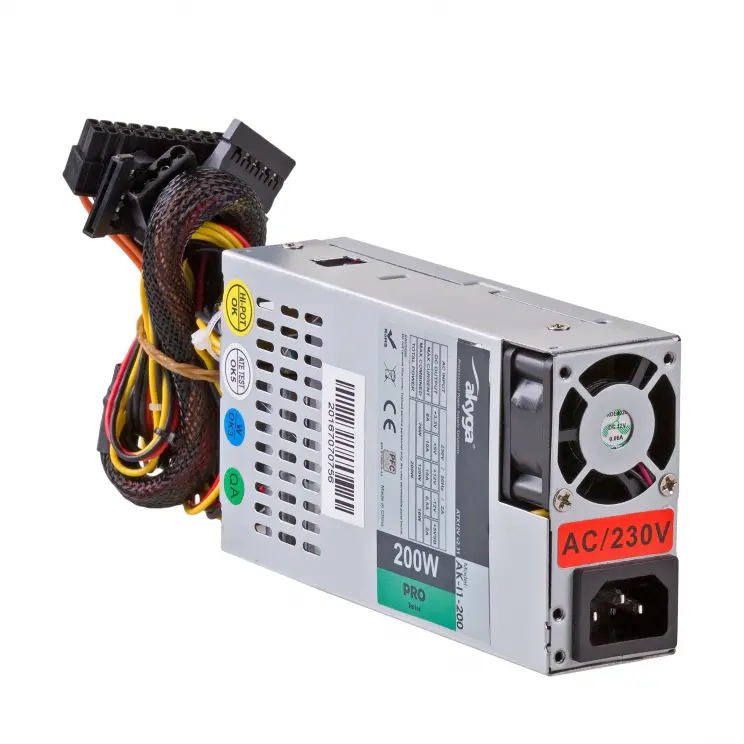

Modern ITX power supply Akyga® AK-I1-200 Pro series 200W, dedicated especially for mini-ITX cases like 1U case type. Commonly used both in ITX cases and racks.

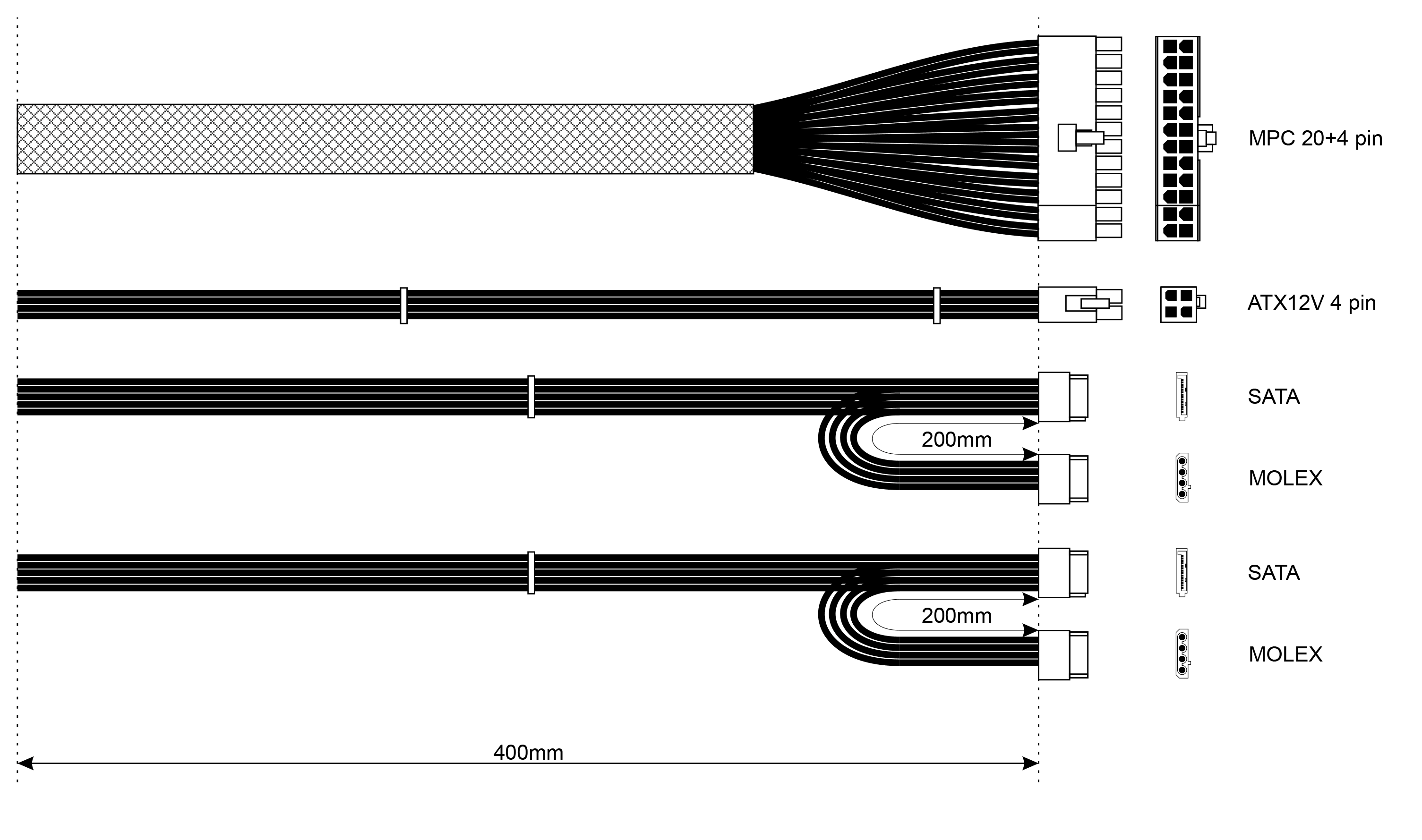

The power supply is equipped with P4 4-pin connector, 2 x MOLEX connectors, 2 x SATA connectors and a universal 24-pin motherboard connector. Effective cooling is provided by efficient, silent fan of 4 cm diameter with automatic speed control. High efficiency above 70% allows effective supplying and so the stable operation of the power supply affects the reliability of all components of the computer.

An important aspect is the presence of several important protectors (OVP, OCP, OPP, OTP, SCP, UVP) and PFC filter that protects and prevents motherboard, processor and other parts from damage and stabilize the operation of the power supply so that it works without any unwanted interference.

Sold with the power cord.
