Description

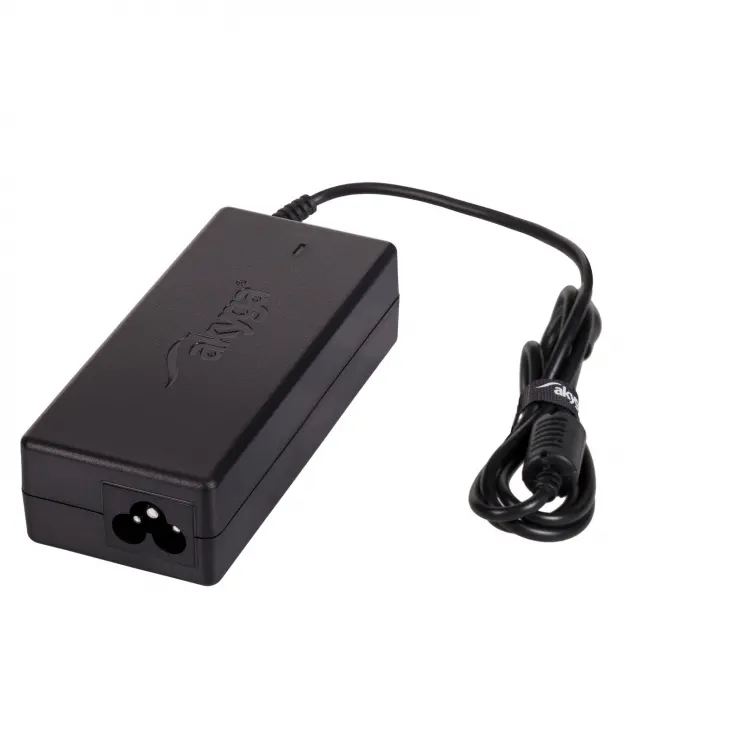

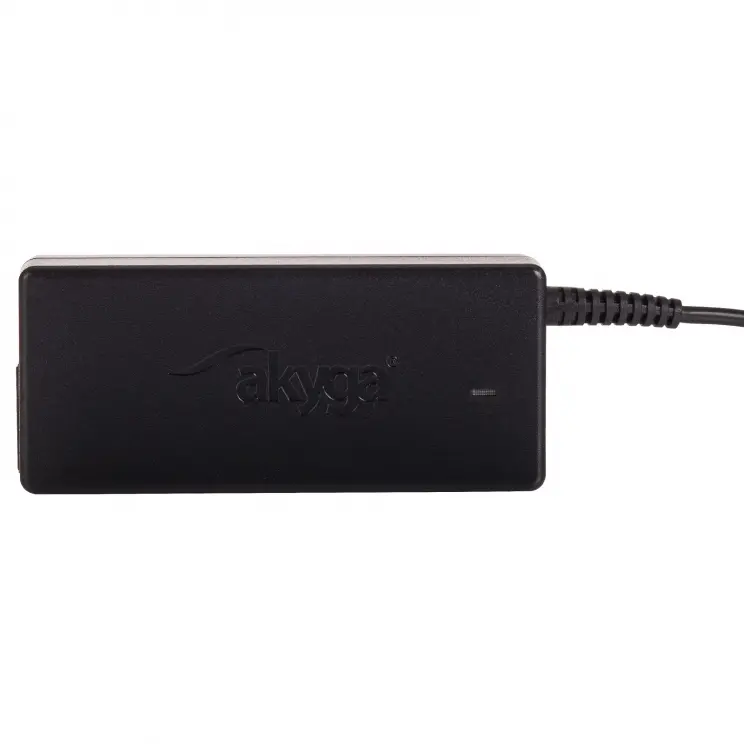

Akyga® AK-ND-12 is a notebook dedicated power supply for devices powered with 19V/4.74A, 90W power and 5.5*1.7 mm plug.

The cord of the power adapter has been equipped with a high-quality ferrite core that prevents and protects devices from any possible mode currents and high frequency noise. A set of protectors (OVP, OTP, OPP, SCP and OCP) guarantees 100% secure, stable work both powered device and the power supply. Additional safety for the equipment is provided by the soft start technology, which neutralizes the shock of the first stroke of current during the device startup.

All Akyga power supplies are provided in an environmentally friendly EcoBox.

A power supply dedicated to Acer laptops.

We encourage you to use our notebook power adapter search engine.

Features
  • Product code AK-ND-12
  • Product type AC/DC adapter
  • Compatible with Acer
  • Series Dedicated
  • Supply voltage 100-250 V
  • Power consumption < 2.4 A
  • Efficiency > 80 %
  • Output voltage 19 V
  • Output amperage 4.74 A
  • Outlet cord length 1.2 m
  • Output connector 5.5 x 1.7 mm
  • Maximum power 90 W
  • Power inlet IEC C6
  • Mechanical switch None
  • Ground wire Yes
  • Soft start Yes
  • OVP Yes
  • OCP Yes
  • OPP Yes
  • OTP Yes
  • SCP Yes
  • USB connector None
  • Power cable included No
  • Material ABS
  • Product color Black
  • Color insets Green LED
  • Display None
  • MTBF 100000 h
  • Temperature 5 - 50 °C
  • Package EcoBox
  • Product size (L x W x H) 131,5 x 56 x 31 mm
  • Package size (L x W x H) 190 x 90 x 38 mm
  • Net weight 244 g
  • Gross weight 293 g
  • CE compatibility Yes
  • FCC compatibility Yes
  • RoHS compatibility Yes
  • REACH compatibility Yes
  • EAN code 5901720130754
  • Warranty 24 months
