Description

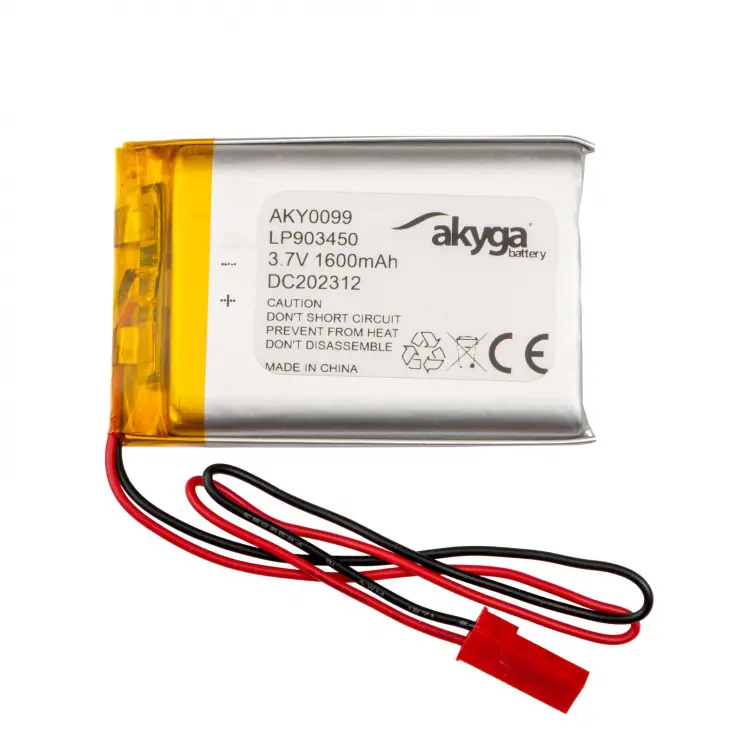

The LP903450 lithium polymer battery is a power source with a wide range of applications. It has a nominal voltage of 3.7 V and a capacity of 1600 mAh. The technology used allows for obtaining large capacities with a small battery size. That is why Akyga Li-Po batteries are ideally suited to power all kinds of high-end projects. To facilitate battery installation, 150 mm long cables with JST 2 pin connector are attached to it.
The battery is compliant with the following certificates: CE, RoHS, MSDS.
Before using, read the rules for using lithium polymer batteries. Incorrect use may lead to their damage.
Features
- Product code AKY0099
- Part number LP903450
- Responsible Entity Ropla Elektronik HP Sp. z o.o., 52-200 Suchy Dwór, Wrocławska 1c, Polska/Poland, [email protected]
- Product type Polymer Li-Ion Battery
- Rated voltage 3.7 V
- Battery capacity 1600 mAh
- Protection PCM
- Leads wires, connector+socket
- Thickness 9 mm
- Width 34 mm
- Height 50 mm
- Connector type 2,54 JST, 2 pins
- Connector part number JST SYP-02T-1
- Cable length 150 mm
- Package UniBag
- Product size (L x W x H) 50 x 34 x 9 mm
- Net weight 32 g
- CE compatibility Yes
- RoHS compatibility Yes
- MSDS compatibility Yes
- EAN code 5906574243582
- Warranty 24 months
