Description

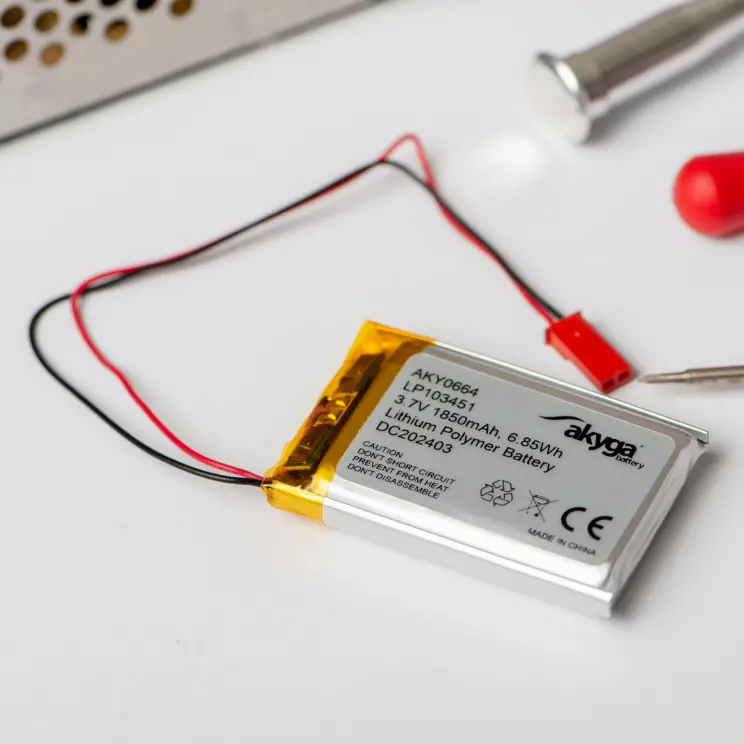

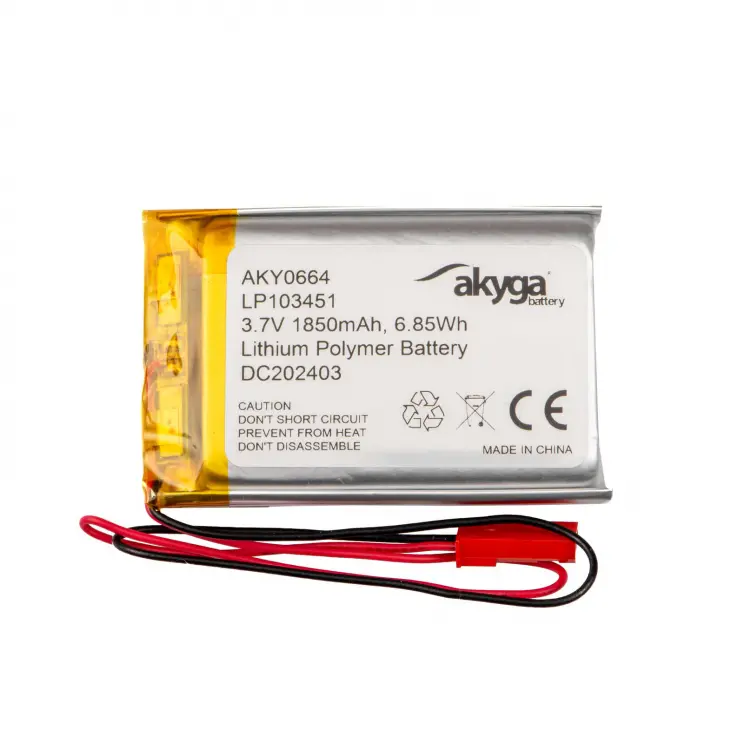

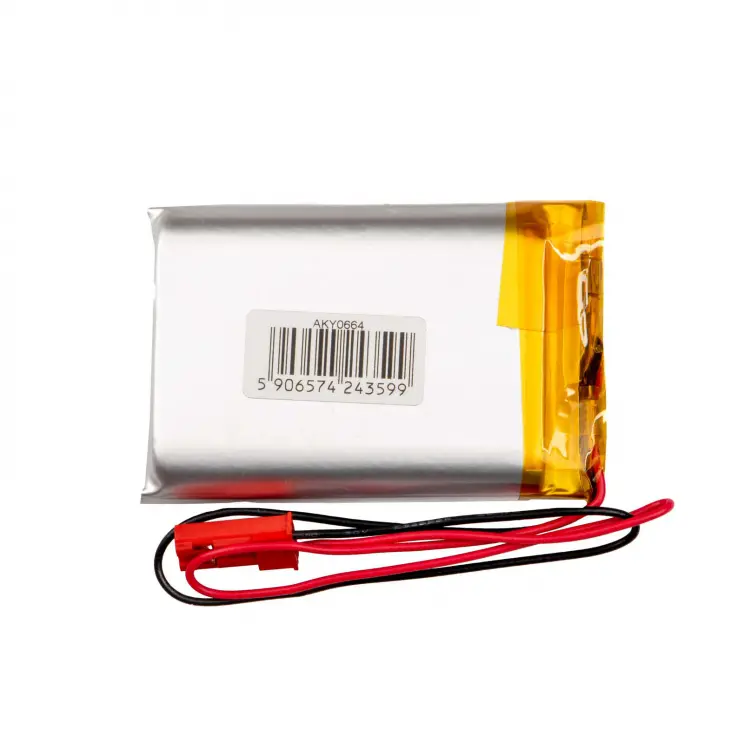

AKY0664 has a high quality PCM that protects the battery against short circuiting, excessive discharge and overcharging. The voltage of 3.7 V and the capacity of this battery is 1850 mAh. Installation makes it easier to terminate 150 mm cables with a 2.54 JST connector, 2 pins.
The battery is compliant with the following certificates: CE, RoHS, MSDS.
Before using, read the rules for using lithium polymer batteries. Incorrect use may lead to their damage.
Features
- Product code AKY0664
- Part number LP103451
- Responsible Entity Ropla Elektronik HP Sp. z o.o., 52-200 Suchy Dwór, Wrocławska 1c, Polska/Poland, [email protected]
- Product type Polymer Li-Ion Battery
- Rated voltage 3.7 V
- Battery capacity 1850 mAh
- Protection PCM
- Leads wires, connector+socket
- Thickness 10 mm
- Width 34 mm
- Height 51 mm
- Connector type 2,54 JST, 2 pins
- Connector part number JST SYP-02T-1
- Cable length 150 mm
- Package UniBag
- Product size (L x W x H) 51 x 34 x 10 mm
- Net weight 34 g
- CE compatibility Yes
- RoHS compatibility Yes
- MSDS compatibility Yes
- EAN code 5906574243599
- Warranty 24 months
