Description

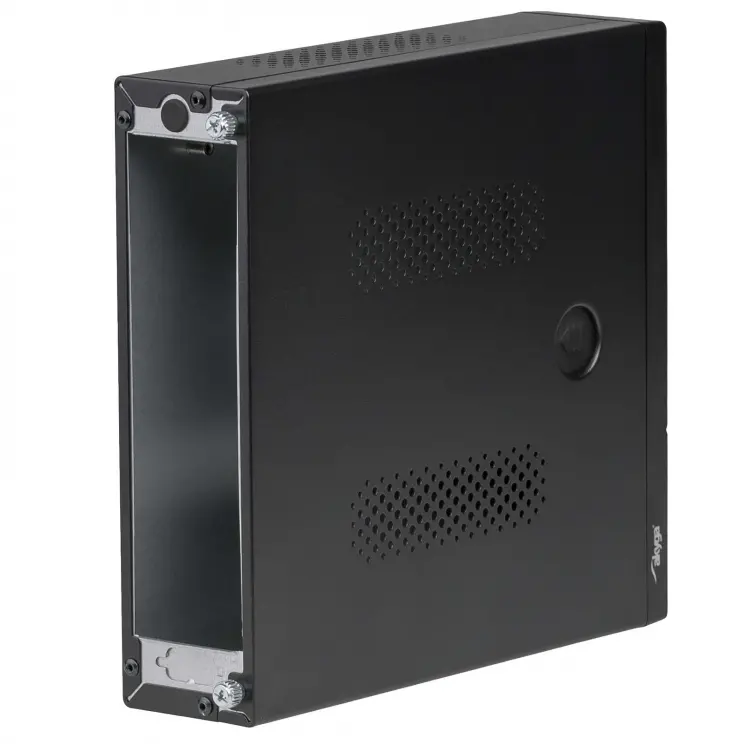

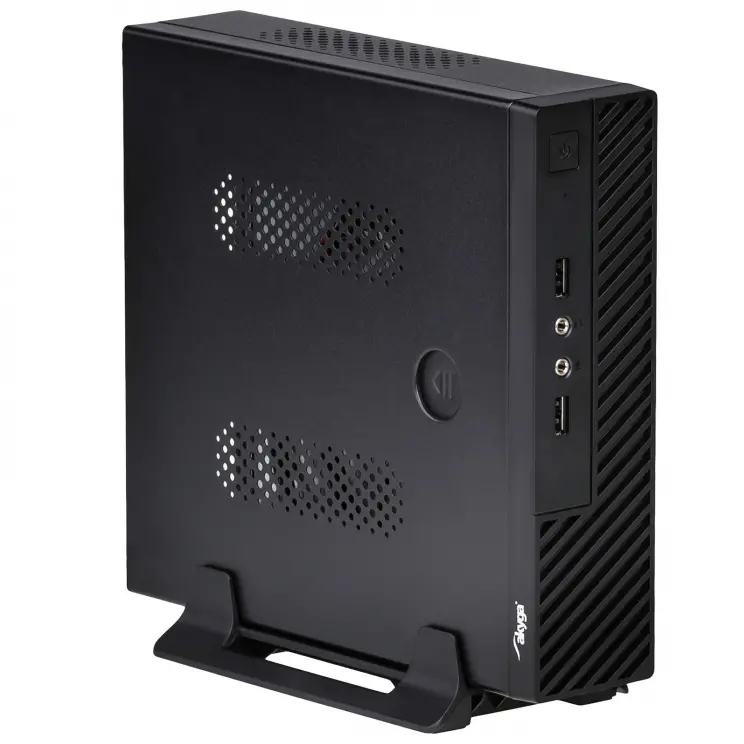

The Akyga AK-100-01BK Mini ITX computer case is a compact solution for those who value comfort and modern functionality, as well as reasonable price. An important feature of this case is the VESA bracket, that allows you to mount the case on the back of any standard monitor, thereby saving work space which is especially useful in case of office computers.

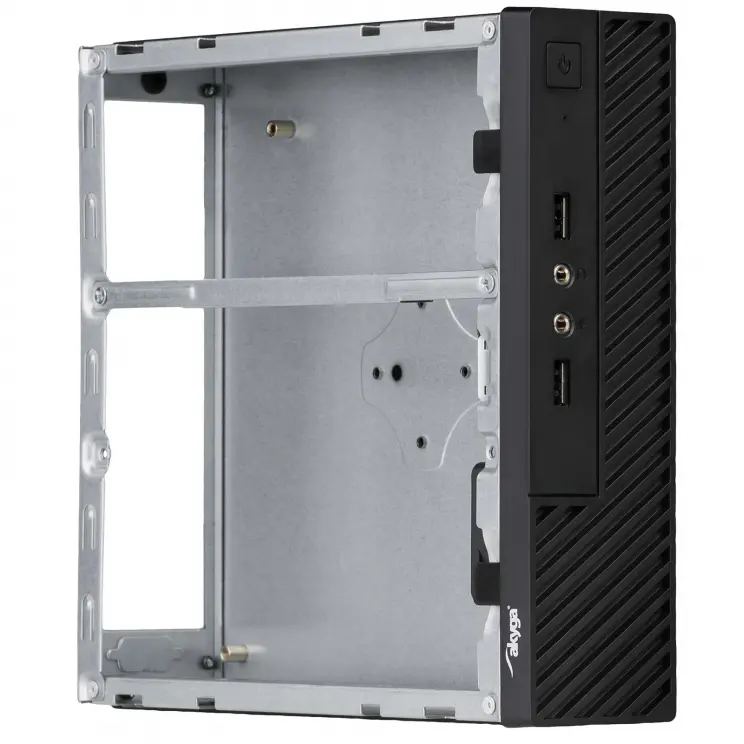

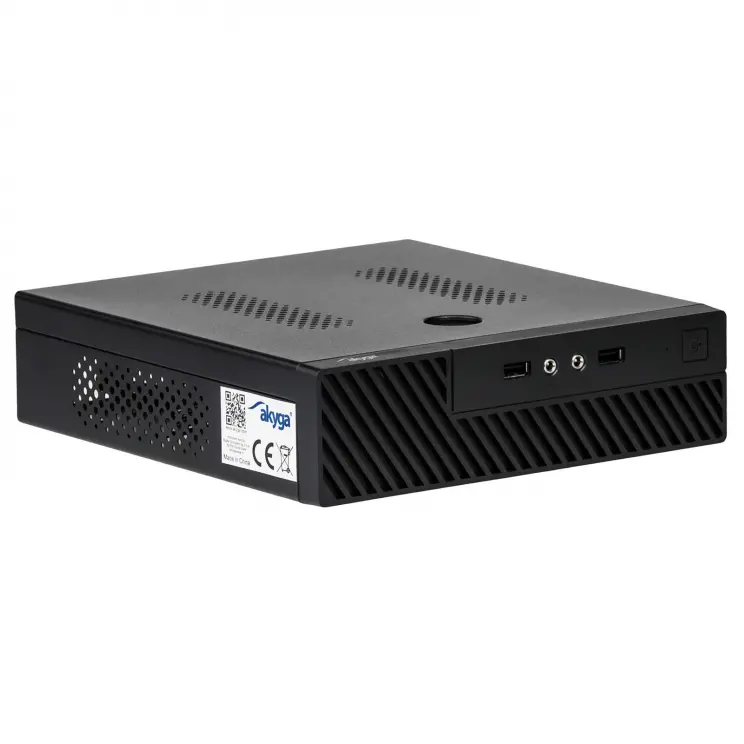

There are two USB 2.0 ports on the front of the case for connecting wireless mice, keyboard, external storage devices or other peripherals. Right next to are the headphone and microphone inputs. Ports placement allows fast and convenient connection of the devices.

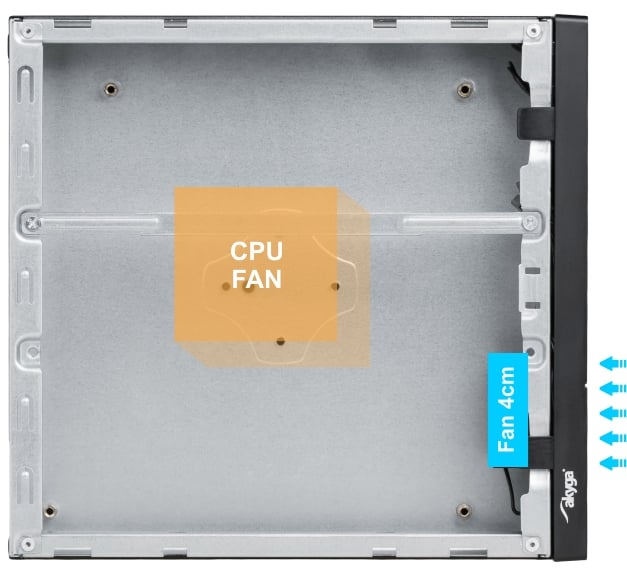

A quiet, 4 cm fan with automatic speed control ensures proper cooling. Additional vents are placed on side panels. With this solution the air circulation is much better than in the completely built-up boxes, which guarantees cooler conditions for key components, ensuring their stable operation for a longer time. The maximum height of the CPU cooling systems is 45 mm.

A set of assembly screws included. The contents of the set may vary depending on the delivery.

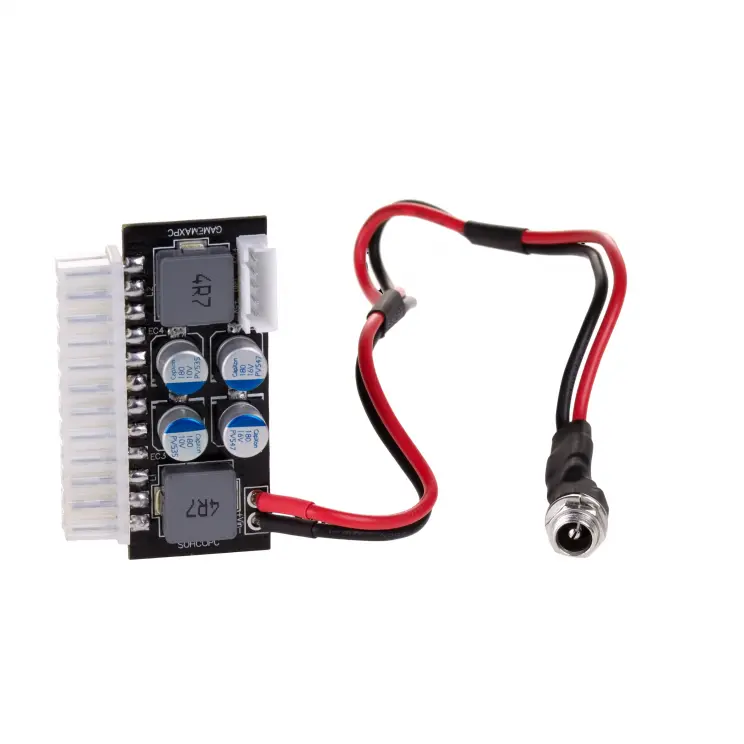

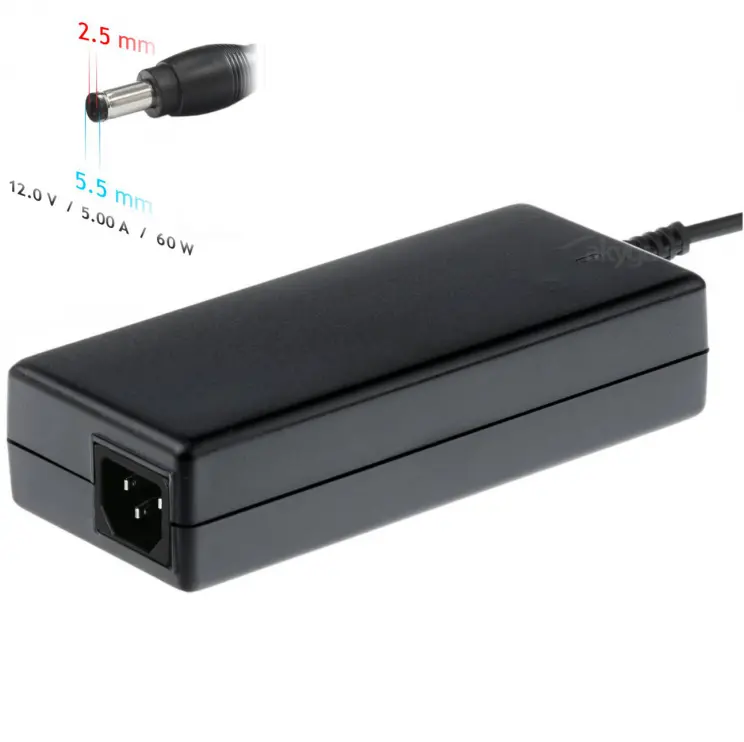

The set includes a 60W power supply with high efficiency above 80%.

Features
  • Product code AK-100-01BK
  • Product type Computer case ITX
  • Format ITX
  • Series ITX Tower Case
  • Motherboard compatibility Mini-ITX
  • Drive bay 5.25" external None
  • Drive bay 5.25" internal None
  • Tool-less 5.25" drive installation No
  • Drive Bays 3.5" internal None
  • Drive bay 3.5" external None
  • Tool-less 3.5" drive installation No

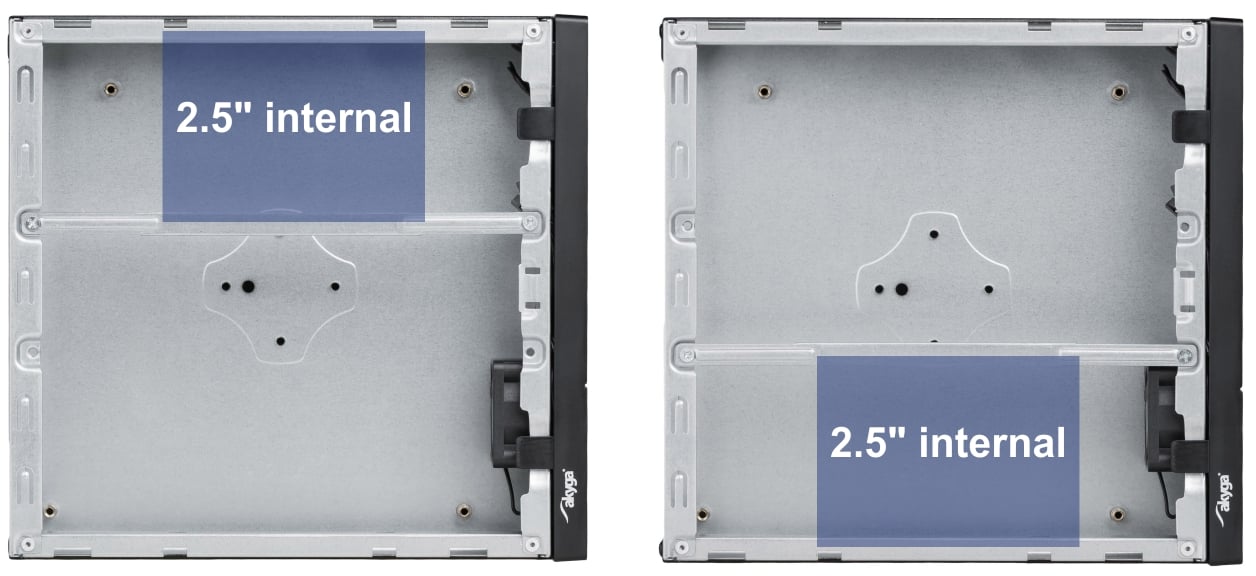

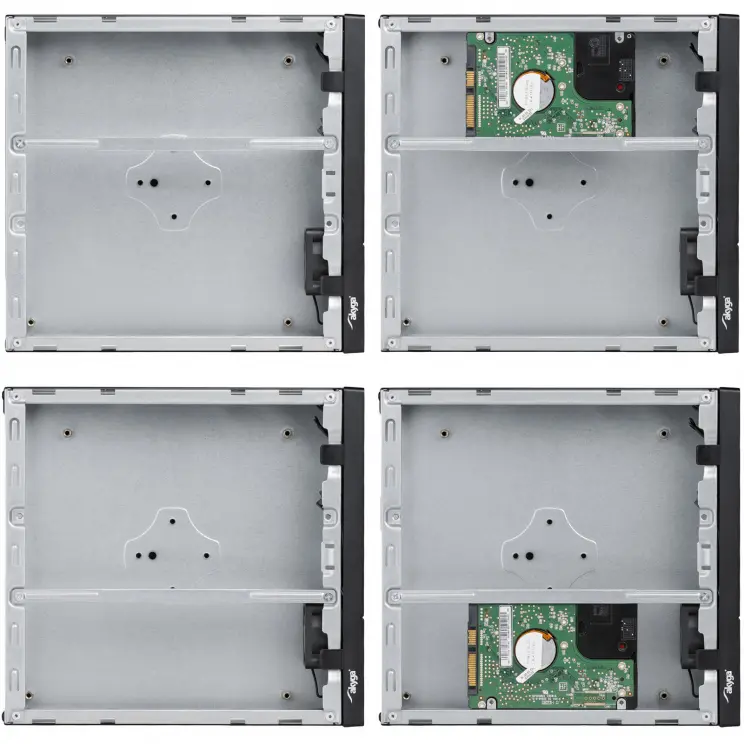

  • Drive bays 2.5" internal 1 pc
  • Tool-less 2.5" drive installation No
  • Tool-less 2.5" slim drive installation No
  • Drive Bays 2.5" and 3.5" in all 1 pc
  • Total internal bays 1 pc
  • Total external bays None
  • VESA 75 x 75, 100 x 100

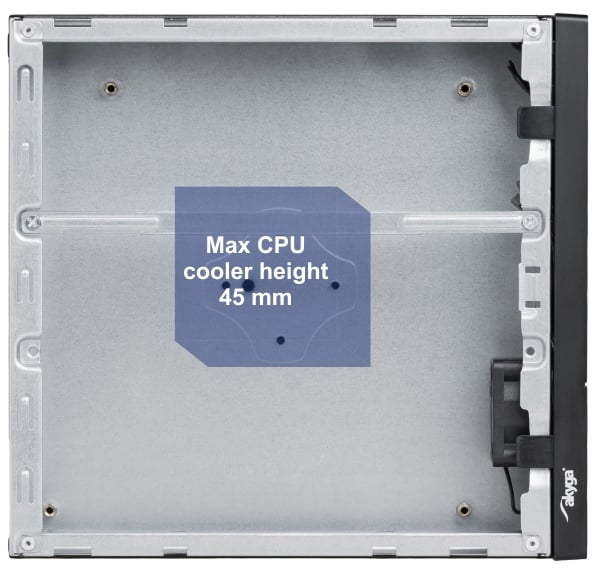

  • Maximum CPU cooling height 45 mm
  • Sheet thickness 0.4 mm
  • USB 3.0 ports on the front panel None
  • USB 2.0 ports on the front panel 2 pcs
  • Total number of USB connectors 2 pcs
  • Memory card reader None
  • Audio input on the front panel 1 pc
  • Microphone input on the front panel 1 pc
  • Expansion card slots Acc. to mainboard
  • Security lock Yes
  • Hole for padlock No
  • Cable management system Basic
  • Installed fans 1 pc
  • Supply voltage 12 V
  • Efficiency > 80 %
  • 80 PLUS compatibility No
  • Ground wire Yes
  • OVP Yes
  • OCP Yes
  • OPP Yes
  • OTP Yes
  • SCP Yes
  • Fan size 40 mm
  • Fan adjustments Automatic
  • Spaces for additional fans None
  • Water cooling ready No
  • Anti-dust filters No
  • Power supply tunnel No
  • Power supply unit included AK-CA-38, AK-ND-30
  • Material Galvanized steel
  • Product color Black
  • Display None
  • MTBF 100000 h
  • Temperature 5 - 50 °C
  • Package EcoBox
  • Product size (L x W x H) 200 x 55 x 200 mm
  • Package size (L x W x H) 288 x 136 x 226 mm
  • Net weight 1.15 kg
  • Gross weight 1.45 kg
  • CE compatibility Yes
  • RoHS compatibility Yes
  • Included accessories AK-ND-30, AK-CA-38
  • EAN code 5901720132932
  • Warranty 24 months
