Description

Akyga® AK-B1-500E ATX power supply 500W is one of the basic power supplies in our offer dedicated to power desktop computers.

Made of high quality components, the power supply has a 3x SATA connectors, 2x MOLEX connectors, P4 4-pin connector and an universal 24-pin motherboard connector. Supports ATX 12V 2.0 specifications, so it can be used with current and next generation of platforms with multi-core processors. Silent 12 cm fan with chromed grill provide efficient cooling. Manual on/off switch allows for safe power cut off without the need of disconnecting the network cord. High efficiency and stable operation of the power supply affects the reliability of all computer components.

Several important protectors (OVP, OCP, OPP, OTP, SCP) and PFC filter protect and prevent main computer parts from damage and stabilize the operation of the power supply so that it works without any unwanted interference.

Features
  • Product code AK-B1-500E
  • Product type Computer power supply
  • Format ATX 2.31
  • Series Basic
  • Power consumption < 5 A
  • Efficiency > 70 %
  • 80 PLUS compatibility No
  • 80 PLUS certificate None
  • Current on the +3.3V rail 30 A
  • Current on the +5V rail 34 A
  • Maximum load on +3.3V and +5V line 250 W
  • Current on the +12V rail 21 A
  • Maximum load on 12V line 252 W
  • Maximum power 500 W
  • Mainboard Power Connector 24-pin
  • Power connector ATX12V P4 1 pc
  • Power connector EPS12V 8 pin None
  • Power connector PCI-E 6 pin None
  • Power connector PCI-E 6+2 pin None
  • Power connector PCI-E 8 pin None
  • Molex connector 2 pcs
  • Mini-Molex connector None
  • SATA connector 3 pcs
  • Modular power supply No
  • PFC filter Passive
  • Mechanical switch Yes
  • Ground wire Yes
  • OVP Yes
  • OCP Yes
  • OPP Yes
  • OTP Yes
  • SCP Yes
  • UVP None
  • Power supply connector IEC C14
  • Fan size 120 mm
  • Fan adjustments Automatic
  • Cable length 30 - 60 cm
  • Power cable included No
  • Material Galvanized steel
  • Product color Grey
  • MTBF 100000 h
  • Temperature 5 - 50 °C
  • Package EcoBox
  • Product size (L x W x H) 200 x 150 x 85 mm
  • Package size (L x W x H) 220 x 160 x 95 mm
  • Net weight 1.01 kg
  • Gross weight 1.09 kg
  • CE compatibility Yes
  • FCC compatibility No
  • RoHS compatibility Yes
  • REACH compatibility Yes
  • EAN code 5901720133236
  • Warranty 24 months

ratings

add_rating

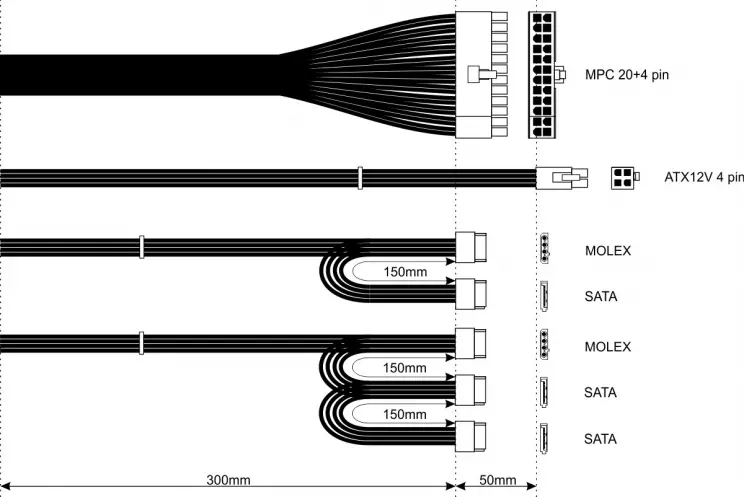

Cable map

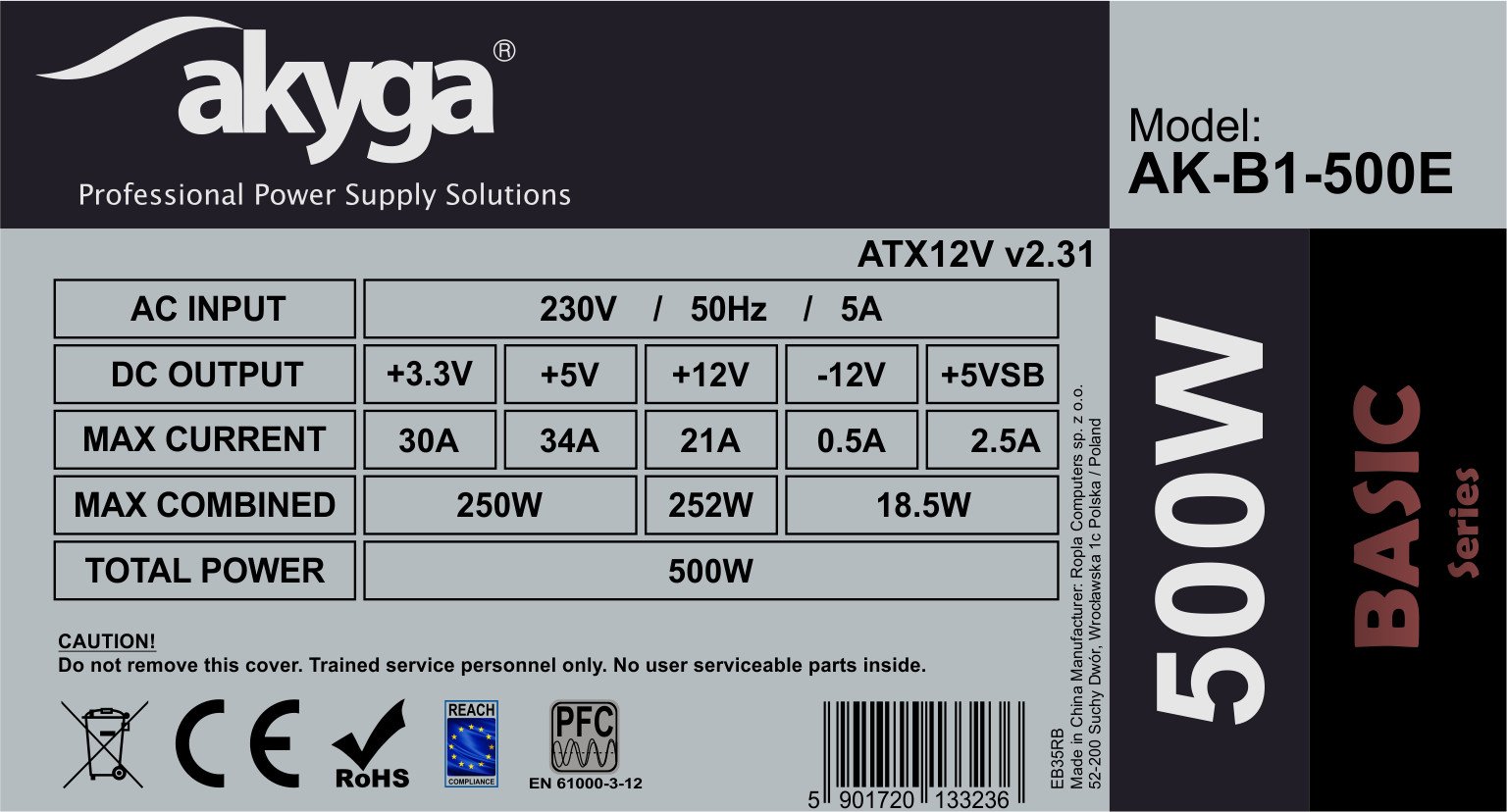

Nameplate
