SFF Case AK-502-02BK

  • Product code AK-502-02BK
  • Product type Computer case SFF
  • Format Small Form Factor
  • Series SFF Tower Case
  • Motherboard compatibility Micro ATX, Flex ATX, Mini ITX
  • Drive bay 5.25" external 1 pc
  • Drive bay 5.25" internal None
  • Tool-less 5.25" drive installation Yes
  • Drive Bays 3.5" internal 1 pc
  • Drive bay 3.5" external 1 pc
  • Tool-less 3.5" drive installation Yes
  • Drive bays 2.5" internal 1 pc
  • Tool-less 2.5" drive installation No
  • Tool-less 2.5" slim drive installation No
  • Drive Bays 2.5" and 3.5" in all 3 pcs
  • Total internal bays 2 pcs
  • Total external bays 2 pcs
  • Maximum CPU cooling height 75 mm
  • Sheet thickness 0.55 mm
  • USB 3.0 ports on the front panel 2 pcs
  • USB 2.0 ports on the front panel 2 pcs
  • Total number of USB connectors 3 pcs
  • Memory card reader None
  • Audio input on the front panel 1 pc
  • Microphone input on the front panel 1 pc
  • Expansion card slots 4 Low Profile
  • Security lock Yes
  • Opening sensor Optional
  • Kensington Lock Yes
  • Hole for padlock Yes
  • Cable management system Basic
  • Installed fans 1 pc
  • Fan size 60 mm
  • Fan adjustments Automatic
  • Spaces for additional fans None
  • Water cooling ready No
  • Anti-dust filters No
  • Power supply tunnel No
  • Material Galvanized steel, ABS
  • Product color Black
  • Package EcoBox
  • Product size (L x W x H) 356 x 102 x 338 mm
  • Package size (L x W x H) 445 x 209 x 409 mm
  • Net weight 3.15 kg
  • Gross weight 3.8 kg
  • CE compatibility Yes
  • FCC compatibility No
  • RoHS compatibility Yes
  • REACH compatibility Yes
  • Included accesories Set of mounting screws
  • EAN code 5901720133694
  • Warranty 24 months

Small Form Factor case Akyga® AK-502-02BK is a perfect alternative for those looking for functional and aesthetic miniaturization solutions for a traditional PC case. Due to their minimalistic design and compact size, these cases are eagerly used in office and business computers.

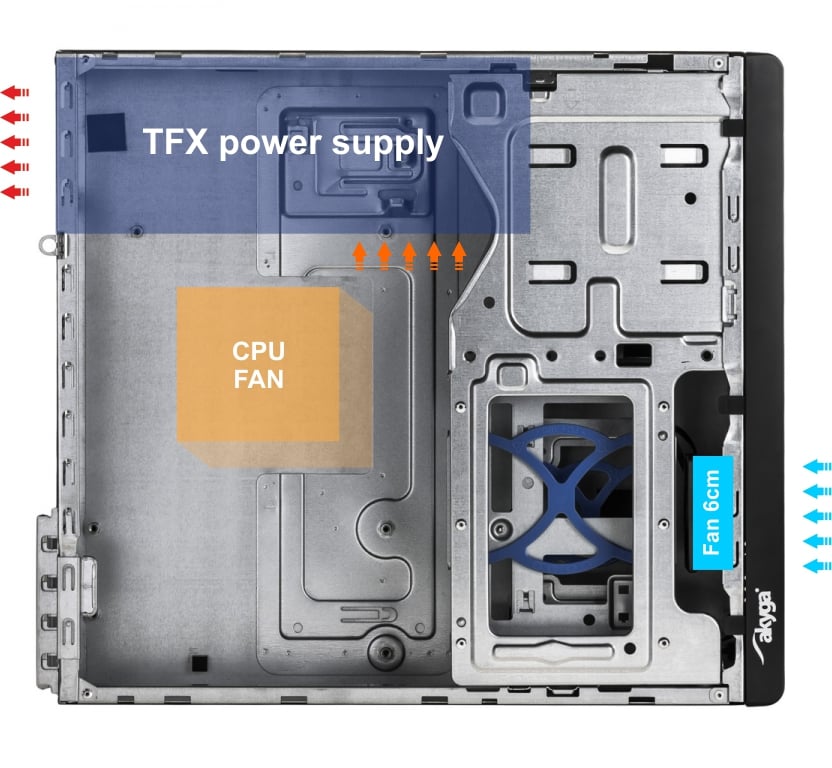

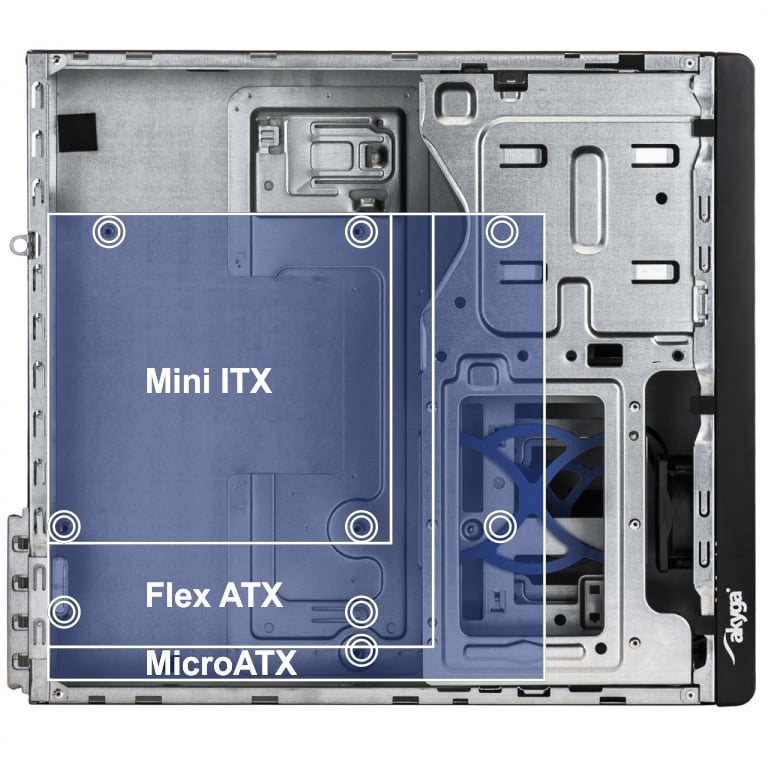

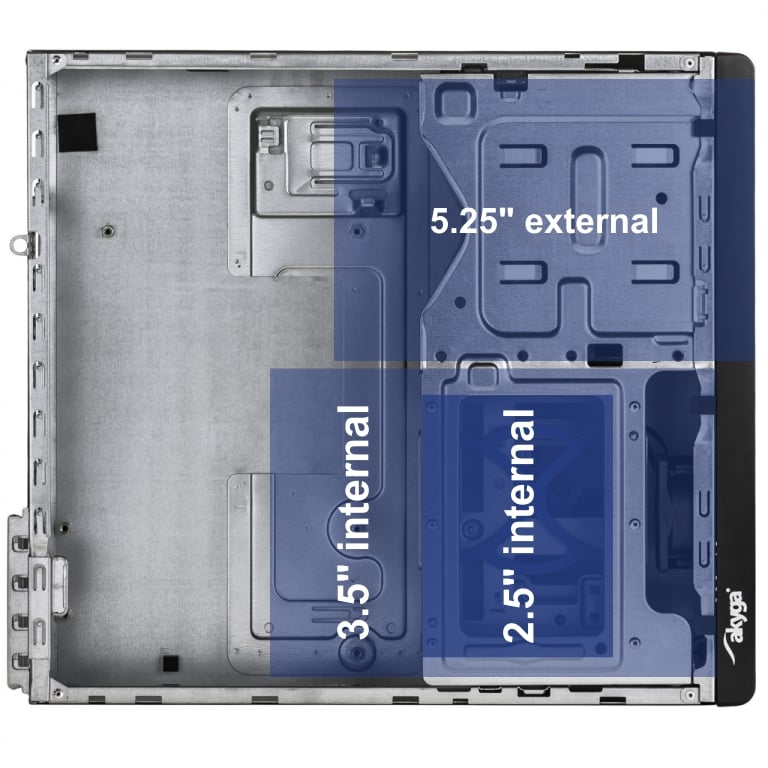

The casing allows the use of one of three different types of motherboards: Micro ATX, Mini ITX and Flex ATX, which is an important asset in adapting the components to changing needs and requirements, enhancing the versatility of the product. In addition, depending on your preferences and needs, the case can be set vertically or horizontally. One 5.25" external bay located on the top and one 3.5" external bay allows to mount a CD/DVD drive, burner or can be used as a space for memory card reader. Inside there is one 3.5” and one 2.5” bay for mounting discs and drives. The design allows for a completely tool-less assembly of all drives, allowing quick replacement and installation. Responsible for efficient cooling of components is quiet fan with a diameter of 6 cm and automatic speed control.

On the front panel there are a two USB 3.0 ports for fast data transfer and two 2.0 port for connecting wireless mice, keyboards, external storage media or other peripherals. The headphone and microphone inputs are located right next to it, providing easy and fast access to the peripherals.

To ensure safety, the case is equipped with a Kensington Security Slot which helps to protect the computer against theft. This feature is eagerly used in office computers.

A set of assembly screws included. The contents of the set may vary depending on the delivery.
To protect the environment, all Akyga cases are packed in EcoBoxes.
