Description

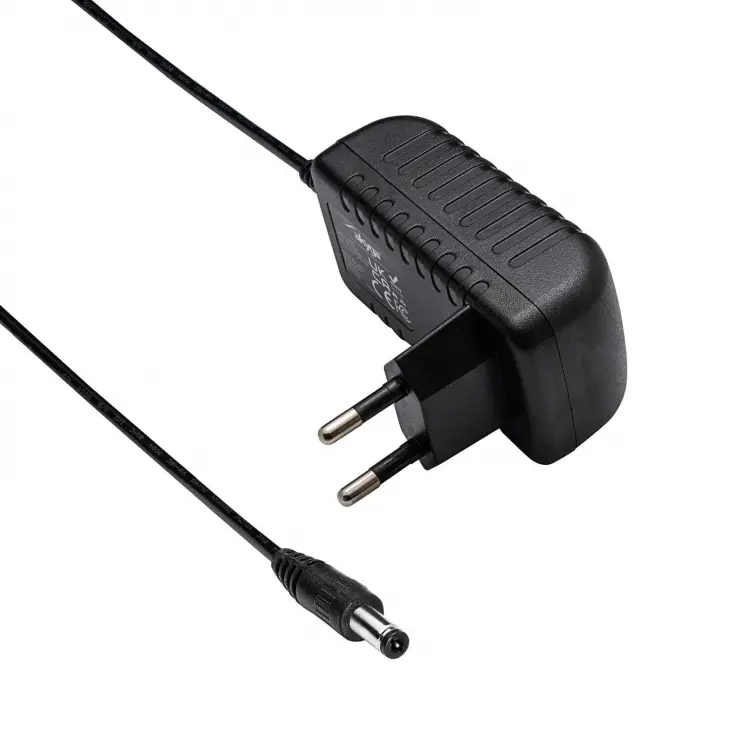

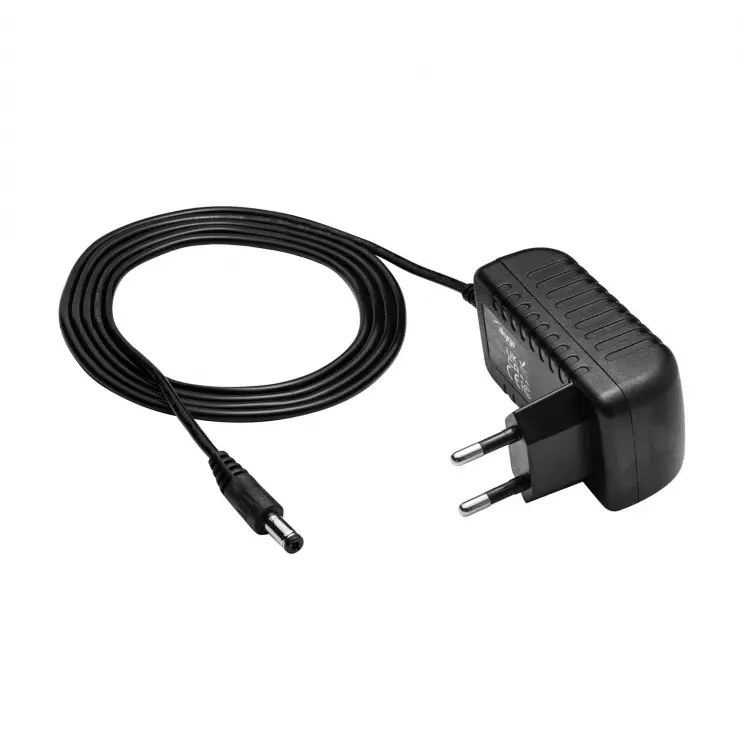

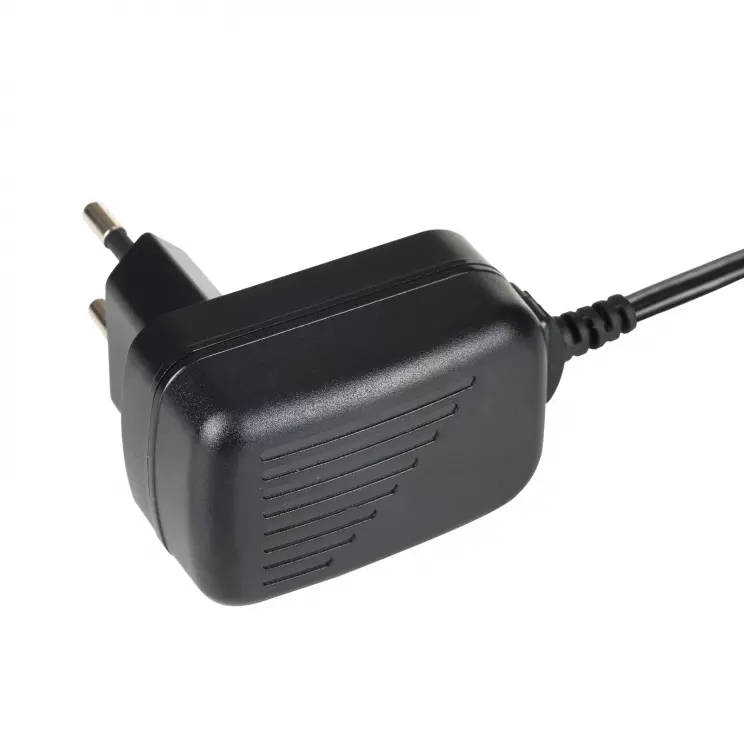

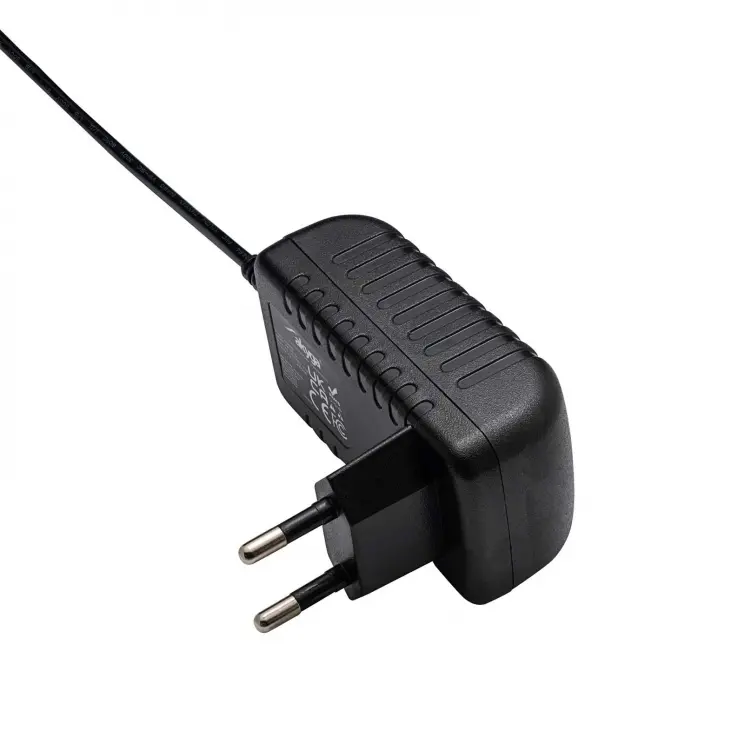

The Akyga® AK-TB-11 is a reliable power supply. It owes its versatility to the popular 5.5 x 2.1 mm connector and 9 V/1 A power supply parameters. They are often found in many devices used every day. They include network equipment such as modems, switches, TCP/IP gates or GSM. In addition, the adapter has a 1.5 m cable, which will provide freedom during installation. What is more, the power supply is equipped with a set of protections, which ensures safe and stable operation. This applies to both the powered devices and the power supply itself.



Features
  • Product code AK-TB-11
  • Product type AC/DC adapter
  • Series Universal
  • Supply voltage 110-240 V
  • Power consumption < 0.4 A
  • Efficiency > 80 %
  • Output voltage 9 V
  • Output amperage 1 A
  • Power inlet CEE 7/16 (Europlug)
  • Mechanical switch None
  • Ground wire None (II protection class)
  • OVP Yes
  • OCP Yes
  • OPP Yes
  • OTP Yes
  • SCP Yes
  • Power supply connector 5.5 x 2.1 mm
  • Cable length 1.5 m
  • Ferrite filter No
  • Material ABS
  • Product color Black
  • MTBF 100000 h
  • Temperature 5 - 50 °C
  • Package EcoBox
  • Product size (L x W x H) 63 x 35 x 59 mm
  • Package size (L x W x H) 160 x 87 x 45 mm
  • Net weight 71 g
  • Gross weight 101 g
  • CE compatibility Yes
  • FCC compatibility Yes
  • RoHS compatibility Yes
  • REACH compatibility Yes
  • EAN code 5901720133991
  • Warranty 24 months
