Description

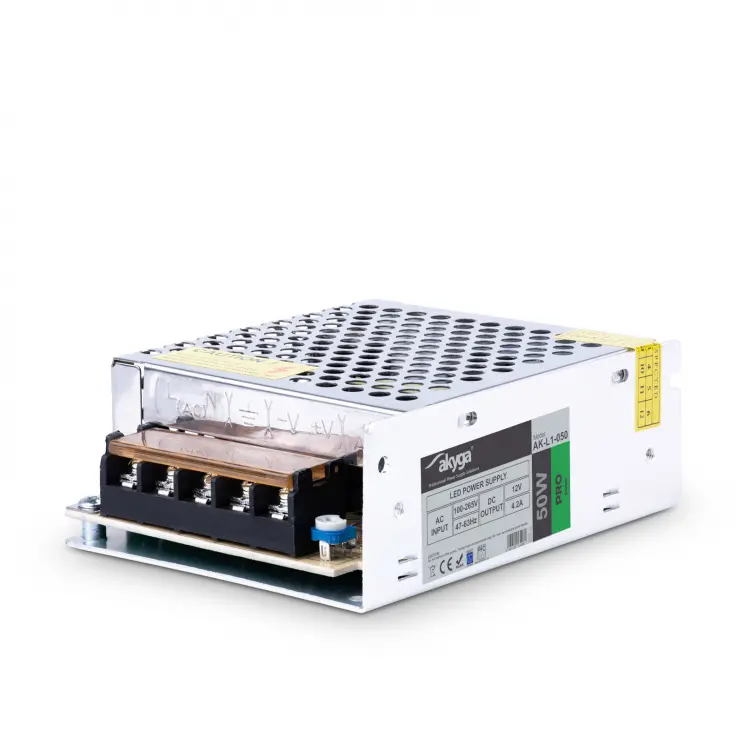

The Akyga® AK-L1-050 is a 50W power supply for industrial automation systems, machine control and lighting based on LED technology, which is used in powering LED strips, LED bulbs, LED panels, RGB LED drivers and other electronic equipment powered with 10.5 - 14V DC, which is regulated by a potentiometr. The current capacity of 4.2A allows to supply for example a 10m LED strip with parameters 4.8 W/m.

In order to properly match the power supply with the LED strip, multiply the length of the strip expressed in meters by the power of the tape, and then select the power supply with a margin of min. 10% to guarantee long and trouble-free system operation, unless the manufacurer of the LED strip recommends otherwise.

Features
  • Product code AK-L1-050
  • Product type LED power supply
  • Series Pro
  • Supply voltage 100-265 V
  • Voltage adjustment 10.5 - 14 V
  • Efficiency 80 %
  • Output voltage 12 V
  • Hold time 50 ms
  • Start time 1000 ms
  • Rise time 30 ms
  • Output amperage 4.2 A
  • Output connector Screw
  • Maximum power 50 W
  • Mechanical switch None
  • Hermetic casing (waterproof) No
  • IP Rating IP20
  • OVP Yes
  • OCP Yes
  • OPP Yes
  • OTP Yes
  • SCP Yes
  • Power supply connector Screw
  • Ferrite filter Yes
  • Temperature 5 - 50 °C
  • Storage temperature -40 / +80 °C
  • Package Carton box
  • Product size (L x W x H) 110x78x37 mm
  • Package size (L x W x H) 113x83x43 mm
  • Net weight 179 g
  • Gross weight 194 g
  • CE compatibility Yes
  • RoHS compatibility Yes
  • REACH compatibility Yes
  • EAN code 5901720134981
  • Warranty 24 months
