Description

The modern SFX Akyga® AK-S1-300 Pro series power supply with 300W power has been designed for mounting in compact computer enclosures in which space is limited.

SFX has been equipped with a P4 4pin power connector, 2 MOLEX connectors, 2 SATA connectors and a universal 24pin connector for motherboards. For a better cooling effect, it has an 80 mm silent fan with automatic speed control. The power supply is characterized by high efficiency above 70%. It was made of durable, galvanized steel.

The PFC filter and a number of protections (OVP, OCP, OPP, OTP, SCP, UVP) ensure stability of both the power supply itself and the powered components, protecting against damage, including motherboard and processor.

In the set with the power supply there is a power cable.

Features
  • Product code AK-S1-300
  • Product type Computer power supply
  • Format SFX
  • Series Pro
  • Supply voltage 230 V
  • Power consumption < 5 A
  • Efficiency > 70 %
  • 80 PLUS compatibility No
  • Current on the +3.3V rail 9 A
  • Current on the +5V rail 13 A
  • Maximum load on +3.3V and +5V line 90 W
  • Current on the +12V rail 17 A
  • Maximum load on 12V line 204 W
  • Maximum power 300 W
  • Mainboard Power Connector 24-pin
  • Power connector ATX12V P4 1 pc
  • Power connector PCI-E 6 pin None
  • Power connector PCI-E 6+2 pin None
  • Power connector PCI-E 8 pin None
  • Molex connector 2 pcs
  • Mini-Molex connector None
  • SATA connector 2 pcs
  • PFC filter Passive
  • Ground wire Yes
  • OVP Yes
  • OCP Yes
  • OPP Yes
  • OTP Yes
  • SCP Yes
  • UVP Yes
  • Power supply connector IEC C14
  • Fan size 80 mm
  • Fan adjustments Automatic
  • Cable length 30 - 60 cm
  • Power cable included Yes
  • Material Galvanized steel
  • Product color Black
  • MTBF 100000 h
  • Temperature 5 - 50 °C
  • Package Foil
  • Product size (L x W x H) 63,5 x 125 x 100 mm
  • Package size (L x W x H) 63,5 x 125 x 150 mm
  • Net weight 0.8 kg
  • Gross weight 0.8 kg
  • CE compatibility Yes
  • FCC compatibility No
  • RoHS compatibility Yes
  • REACH compatibility Yes
  • EAN code 5901720135117
  • Warranty 24 months

ratings

add_rating

Cable map

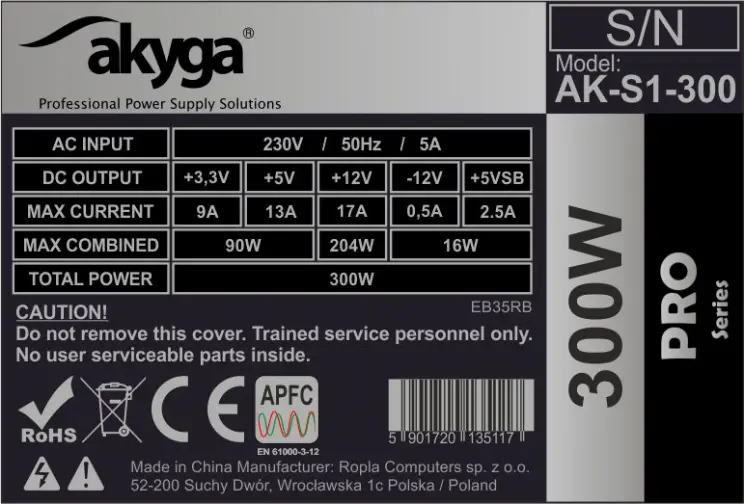

Nameplate
