Description

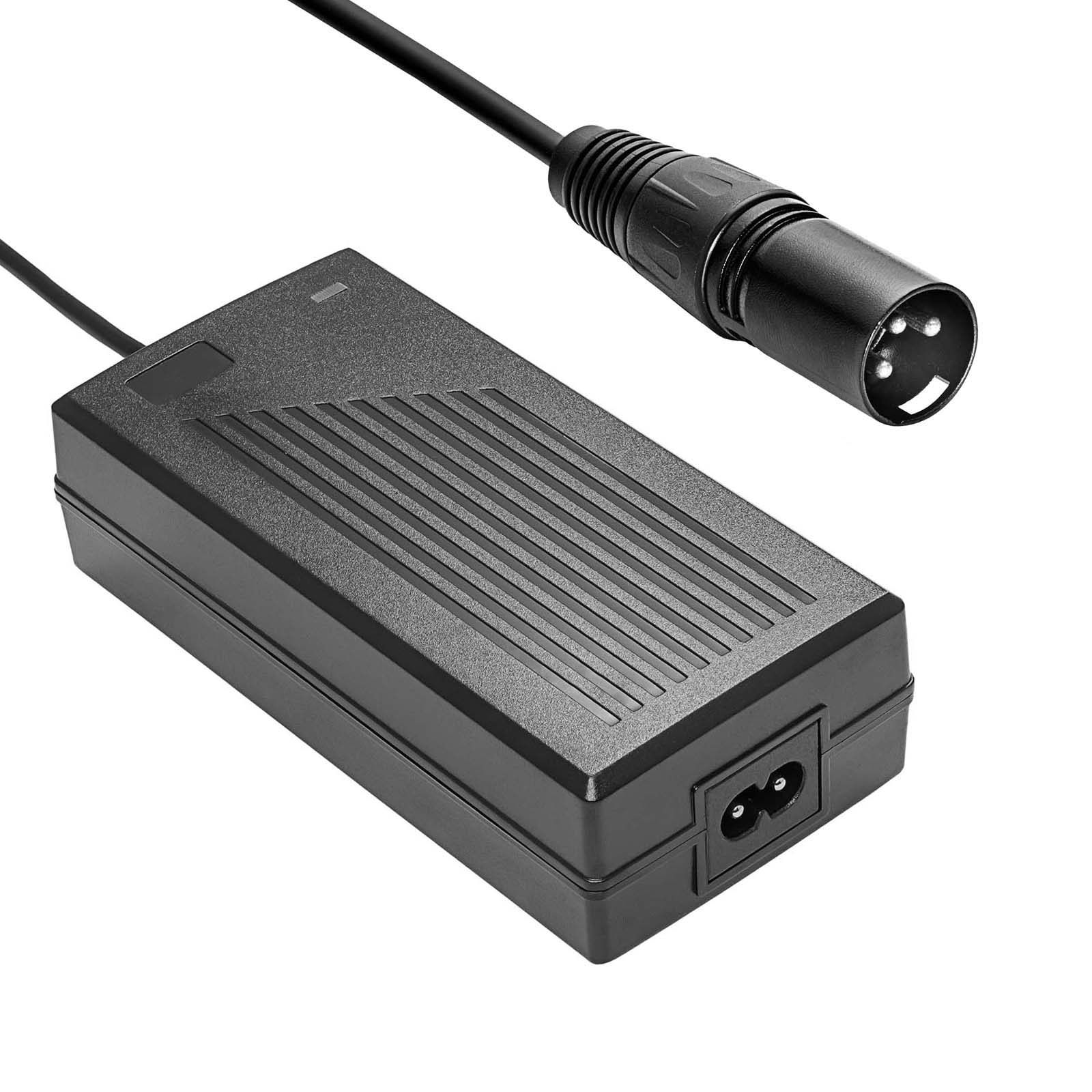

Akyga® AK-EV-01 is a high quality product designed for charging electric bikes with a maximum power of 60W. It is dedicated to vehicles with 24V batteries. The device is equipped with an IEC C8 power socket and an output plug in the Cannon XLR standard, whose main advantages are low losses and high resistance to mechanical damage. The charger is characterized by high efficiency exceeding 80% and a high reliability index. It is also equipped with a LED control indicating the duration or completion of the charging process. Its cable length of 1 m ensures convenient charging of the eBike. The device is available in black, packed in environmentally friendly Ecobox.

The power supply is compatible with bicycle brands like Haibike, Merida, Batavus, Ecobike, Giant, Fischer, Freway, Gazelle, etc.


Features
  • Product code AK-EV-01
  • Product type AC/DC adapter
  • Supply voltage 100-240 V
  • Efficiency > 80 %
  • Output voltage 29.4 V
  • Output amperage 2 A
  • Outlet cord length 1 m
  • Output connector Cannon (3 DIN) XLR (m)
  • Maximum power 60 W
  • Power inlet IEC C8
  • Mechanical switch None
  • Ground wire None (II protection class)
  • IP Rating IP20
  • OVP Yes
  • OCP Yes
  • OPP Yes
  • SCP Yes
  • Ferrite filter None
  • Power cable included None
  • Material ABS
  • Product color Black
  • Backlight color Bicolor diode
  • Display None
  • MTBF 10000 h
  • Package EcoBox
  • Product size (L x W x H) 100 x 50 x 32 mm
  • Package size (L x W x H) 190 x 92 x 38 mm
  • Net weight 216 g
  • Gross weight 265 g
  • CE compatibility Yes
  • RoHS compatibility Yes
  • REACH compatibility Yes
  • EAN code 5901720135889
  • Warranty 24 months
