Description

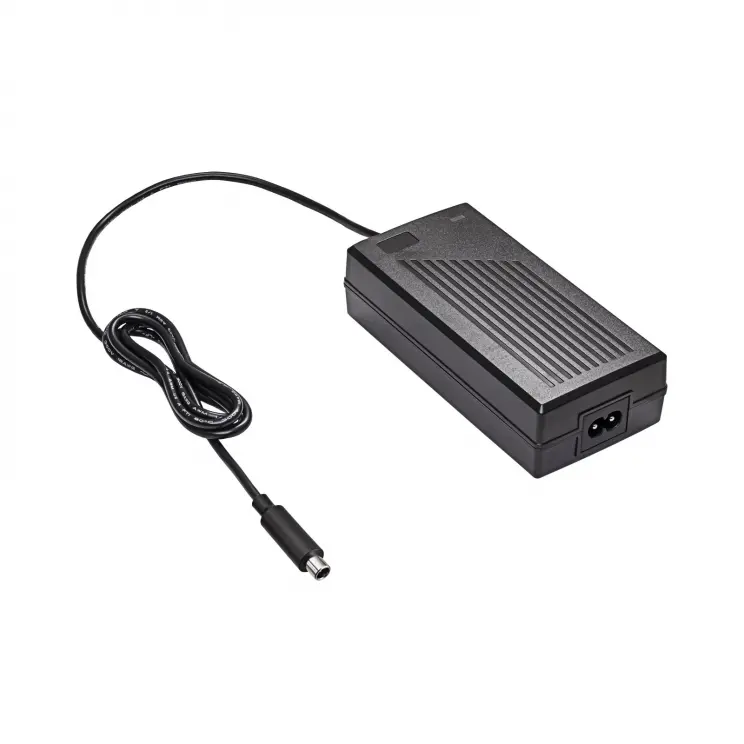

The Akyga® AK-EV-07 charger is a device dedicated to Xiaomi MiJia electric scooters with 36 V cells. The product is equipped with an IEC C8 power socket and an Coaxial RCA output plug on a 1 meter long cable. The maximum charging power of the device is 72 W at the output parameters of 42 V / 1.7 A. The charger has a high efficiency of over 80%. It is also equipped with a LED control informating about the duration or completion of the scooter charging process. The product is available in black, packed in eco-friendly Ecobox.
Features
- Product code AK-EV-07
- Product type AC/DC adapter
- Supply voltage 100-240 V
- Power consumption < 2.5 A
- Efficiency > 80 %
- Output voltage 42.0 V
- Output amperage 1.7 A
- Outlet cord length 1 m
- Output connector RCA 7.9 x 5.6 mm (m)
- Maximum power 72 W
- Power inlet IEC C8
- Mechanical switch None
- Ground wire None (II protection class)
- IP Rating IP20
- OVP Yes
- OCP Yes
- OPP Yes
- SCP Yes
- The cable plug #1 7.9 x 5.6 mm
- Ferrite filter None
- Power cable included None
- Material ABS
- Product color Black
- Backlight color Bicolor diode
- Display None
- MTBF 10000 h
- Package EcoBox
- Product size (L x W x H) 136 x 66 x 38 mm
- Package size (L x W x H) 250 x 110 x 46 mm
- Net weight 293 g
- Gross weight 424 g
- CE compatibility Yes
- RoHS compatibility Yes
- REACH compatibility Yes
- EAN code 5901720135940
- Warranty 24 months
