Description

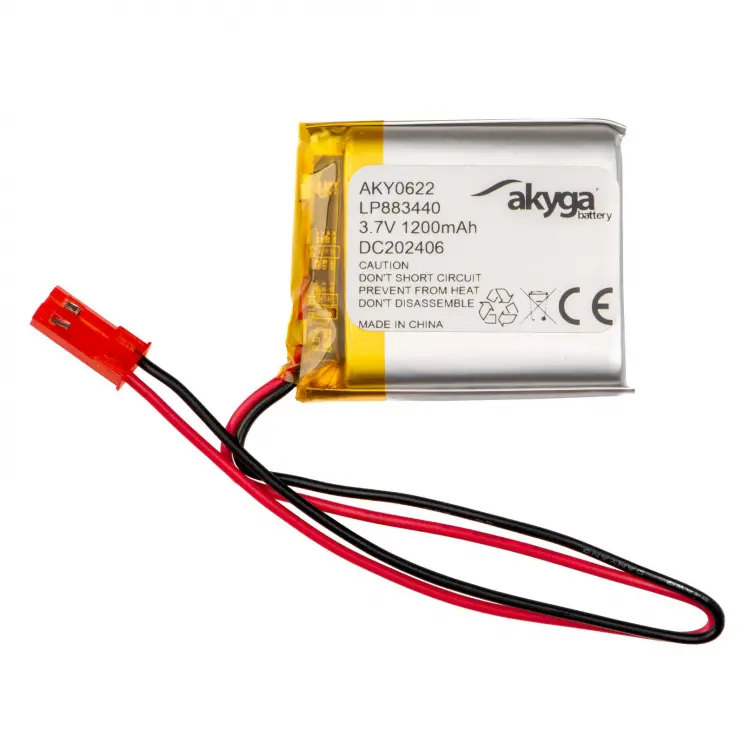

Lithium polymer batteries can be packaged in series or in parallel, increasing their voltage or capacity. AKY0622 with a nominal voltage of 3.7V and a capacity of 1200mAh. It has a built-in PCM protection from which there are two 150mm long cables. Akyga's extensive range includes rechargeable batteries in various configurations with a capacity from 30 mAh to 10,000 mAh and voltages from 3.7 V to 7.4 V.
The battery specified is in accordance with the MSDS, CE, RoHS certificates.
Before assembly, read the rules for using lithium polymer batteries. Incorrect use may lead to their damage
Features
- Product code AKY0622
- Part number LP883440
- Responsible Entity Ropla Elektronik HP Sp. z o.o., 52-200 Suchy Dwór, Wrocławska 1c, Polska/Poland, [email protected]
- Product type Polymer Li-Ion Battery
- Rated voltage 3.7 V
- Battery capacity 1200 mAh
- Protection PCM
- Leads wires, connector+socket
- Thickness 8.8 mm
- Width 34 mm
- Height 40 mm
- Connector type 2,54 JST, 2 pins
- Connector part number JST SYP-02T-1
- Cable length 150 mm
- Product size (L x W x H) 40 x 34 x 8.8 mm
- Net weight 24 g
- CE compatibility Yes
- RoHS compatibility Yes
- MSDS compatibility Yes
- EAN code 5906574243513
- Warranty 24 months
