Description

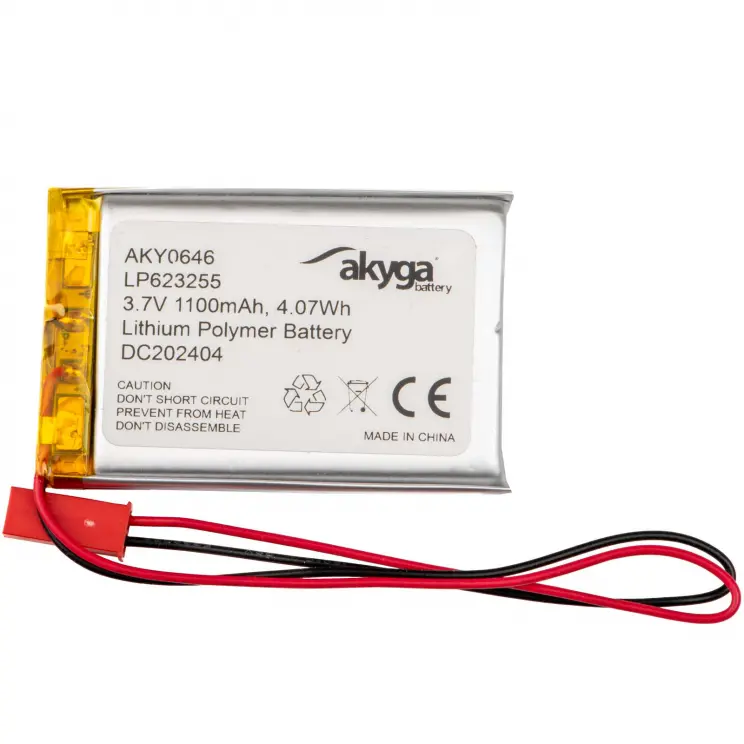

The LP623255 lithium polymer battery is a power source with a wide range of applications. It has a nominal voltage of 3.7 V and a capacity of 1100 mAh. The technology used allows for obtaining large capacities with a small battery size. That is why Akyga Li-Po batteries are ideally suited to power all kinds of high-end projects. To facilitate battery installation, 150 mm long cables with 2.54 JST 2 pin connector are attached to the battery.
The battery is compliant with the following certificates: CE, RoHS, MSDS.
Before using, read the rules for using lithium polymer batteries. Incorrect use may lead to their damage.
Features
- Product code AKY0646
- Part number LP623255
- Responsible Entity Ropla Elektronik HP Sp. z o.o., 52-200 Suchy Dwór, Wrocławska 1c, Polska/Poland, [email protected]
- Product type Polymer Li-Ion Battery
- Rated voltage 3.7 V
- Battery capacity 1100 mAh
- Protection PCM
- Leads wires, connector+socket
- Thickness 6.2 mm
- Width 32 mm
- Height 55 mm
- Connector type 2,54 JST, 2 pins
- Connector part number JST SYP-02T-1
- Cable length 150 mm
- Package UniBag
- Product size (L x W x H) 55 x 32 x 6.2 mm
- Net weight 22 g
- CE compatibility Yes
- RoHS compatibility Yes
- MSDS compatibility Yes
- EAN code 5906574243506
- Warranty 24 months
