Description

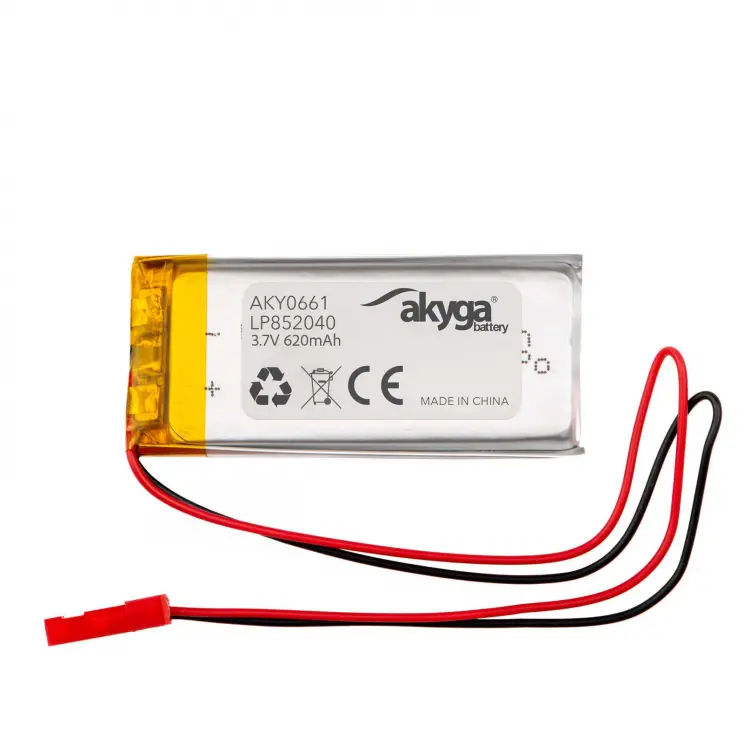

The LP852040 lithium-polymer battery with PCM protection against short circuits, excessive overcharging and discharging the battery with wide application and high quality is characterized by a capacity of 620 mAh and voltage of 3.7 V. The technology used allows obtaining large capacities with a small size of the battery, therefore Li-Po batteries Akyga brands are ideal for supplying all kinds of high-end projects. The battery has two wires, each 150mm long and a 2.54 JST connector, 2 pins.
Meets the standards: CE, RoHS, MSDS.
Use against the rules may damage the battery, so please read the instructions before assembly.
Features
- Product code AKY0661
- Part number LP852040
- Responsible Entity Ropla Elektronik HP Sp. z o.o., 52-200 Suchy Dwór, Wrocławska 1c, Polska/Poland, [email protected]
- Product type Polymer Li-Ion Battery
- Rated voltage 3.7 V
- Battery capacity 620 mAh
- Cell Type Li-Po
- Protection PCM
- Leads wires, connector+socket
- Thickness 8,5 mm
- Width 20 mm
- Height 40 mm
- Connector type 2,54 JST, 2 pins
- Connector part number JST SYP-02T-1
- Temperature -20 / +45 °C
- Product size (L x W x H) 20 x 40 x 8.5 mm
- Net weight 12 g
- CE compatibility Yes
- RoHS compatibility Yes
- MSDS compatibility Yes
- EAN code 5903622760329
- Warranty 24 months
