Description

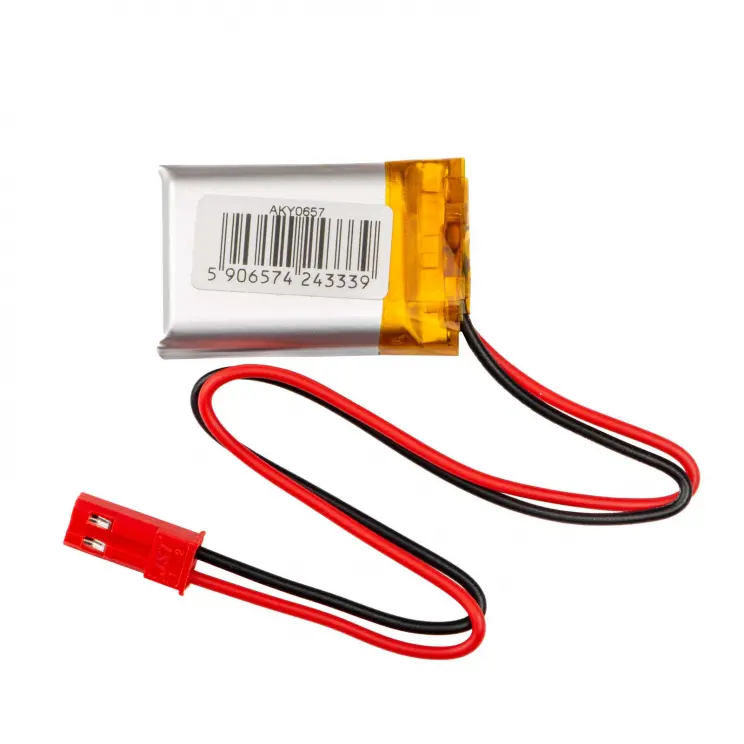

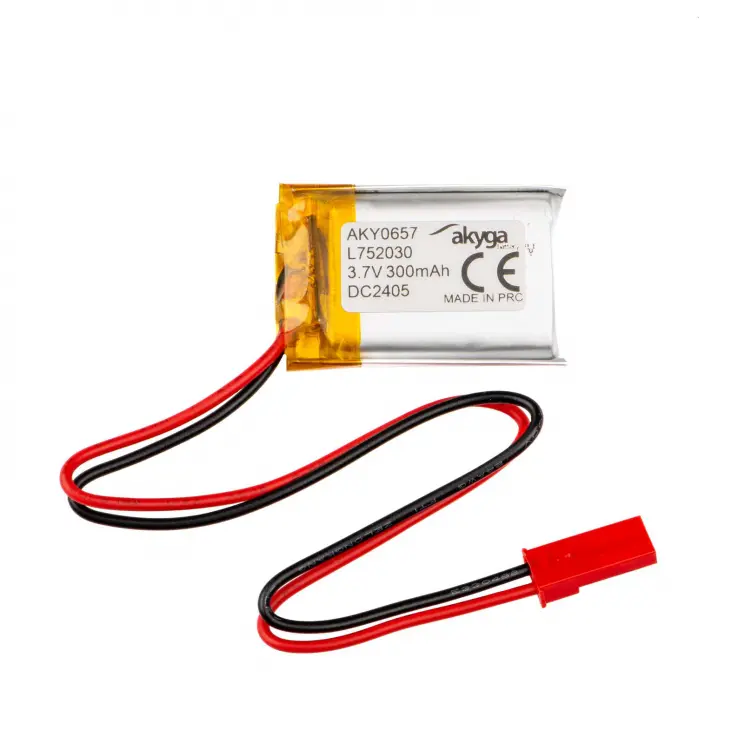

The lithium-polymer battery is a high-quality power source that is widely used. We obtain large capacities at the same time small size, batteries are ideal for powering all kinds of high-end projects. Its nominal voltage is 3.7 V and capacity 300 mAh. It has PCM protecting against battery damage by short circuit, excessive discharge or charging. To facilitate installation of the battery, two 150 mm long cables with 2.54 JST connector and 2 pins are lead out of it.
Battery compliant with: CE, RoHS, MSDS.
Improper use of lithium polymer batteries can lead to their damage, so please read the instructions before assembly.
Features
- Product code AKY0657
- Part number LP752030
- Responsible Entity Ropla Elektronik HP Sp. z o.o., 52-200 Suchy Dwór, Wrocławska 1c, Polska/Poland, [email protected]
- Product type Polymer Li-Ion Battery
- Rated voltage 3.7 V
- Battery capacity 300 mAh
- Protection PCM
- Leads wires, connector+socket
- Thickness 7.5 mm
- Width 20 mm
- Height 30 mm
- Connector type 2,54 JST, 2 pins
- Connector part number JST SYP-02T-1
- Cable length 150 mm
- Package UniBag
- Product size (L x W x H) 30 x 20 x 7.5 mm
- Net weight 8.32 g
- CE compatibility Yes
- RoHS compatibility Yes
- MSDS compatibility Yes
- EAN code 5906574243339
- Warranty 24 months
