Description

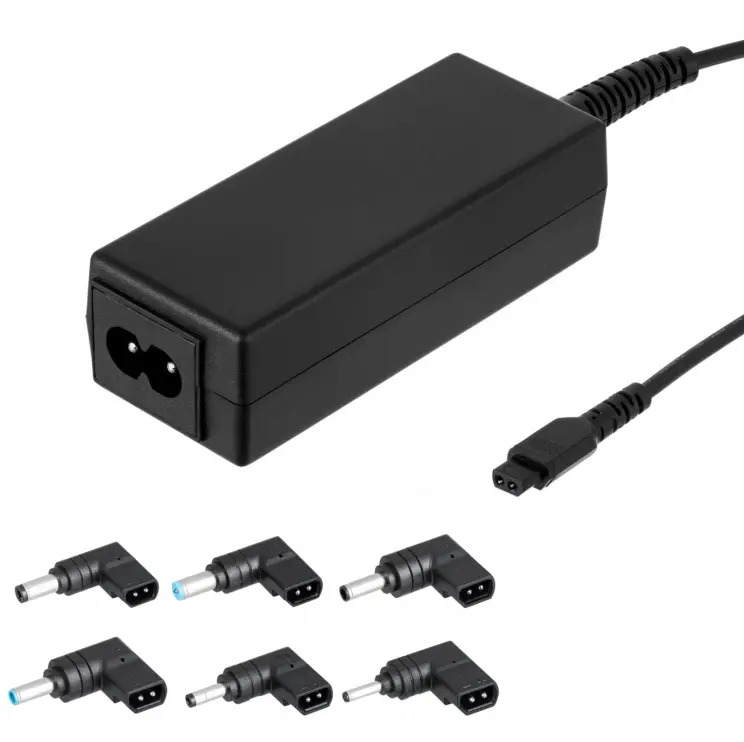

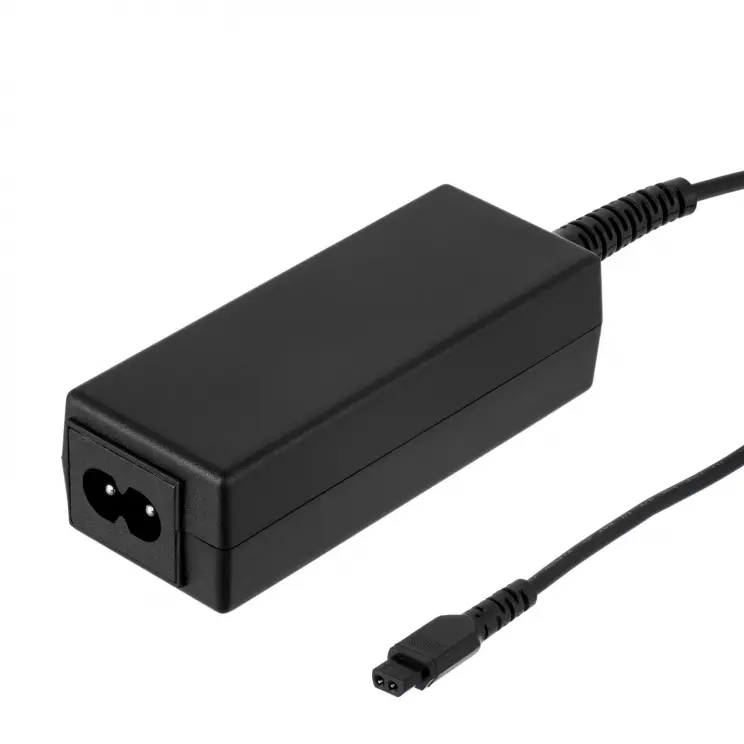

Akyga® AK-NU-11 is a universal power supply for various types of notebooks powered in the range of 19V / 19.5V / 20V and maximum 45W, holding a set of 6 different interchangeable plugs. Plugs differ from each other in inner and outer dimensions and presence of the pin. This kind of solution is particularly recommended for people who want to supply various models of laptops of different brands, without buing and carring many different power supplies. If needed, to match the power supply to a completely different range of products, all you have to do is only change the plug.

The output voltage is adjusted automatically after connecting the selected plug. The cord of the power adapter is equipped with a high-quality ferrite core that prevents and protects devices from any possible mode currents and high frequency noise. A set of protectors (OVP, OTP, OPP, SCP and OCP) guarantees fully secure, stable work of both powered device and the power supply. Additional safety for the equipment is provided by the soft start technology, which neutralizes the shock of the first stroke of current during the device startup.

The set of six interchangeable plugs includes:

  • K5 - 19 V / 20 V 5.5x2.5 mm
  • K6 - 19 V 5.5x1.7 mm
  • K9D - 19.5 V 4.5x3.0 mm + pin
  • K10H - 19.5 V 4.5x3.0 mm + pin
  • K12 - 19 V / 20 V 4.0x1.7 mm
  • K13 - 19 V 3.0x1.0 mm

All Akyga’s power supplies are packed in environment friendly Ecobox and the set includes a 1.5m power cord.

We encourage you to use our notebook power adapter search engine.

Features
  • Product code AK-NU-11
  • Product type Universal Power Supply
  • Series Universal
  • Supply voltage 110-240 V / 50/60 Hz
  • Power consumption < 1 A
  • Automatic output voltage regulation Yes
  • Outlet cord length 1.2 m
  • Mechanical switch None
  • Ground wire Yes
  • OVP Yes
  • OCP Yes
  • OPP Yes
  • OTP Yes
  • SCP Yes
  • Cable length 1.2 m
  • Material ABS
  • Product color Black
  • Backlight color Green LED
  • Display None
  • MTBF 100000 h
  • Temperature 5 - 50 °C
  • Package EcoBox
  • Product size (L x W x H) 89 x 36 x 26.5 mm
  • Package size (L x W x H) 190 x 90 x 38 mm
  • Net weight 245.2 g
  • Gross weight 294.2 g
  • CE compatibility Yes
  • FCC compatibility Yes
  • RoHS compatibility Yes
  • REACH compatibility Yes
  • EAN code 5901720134899
  • Warranty 24 months
