Akyga® AK-EV-05 is a product dedicated to charging electric bicycles equipped with a 48 V cell pack. The Mini XLR female output connector on a 1 meter long cable allows convenient charging of e-bikes. The device has been adapted to be powered with a IEC C8 plug, often used in the power supply field. A significant advantage of the charger is its high efficiency, which exceeds 80%. It is also equipped with a LED control signaling about the duration or completion of the charging process. The product is available in black, packed in environmentally friendly Ecobox.
- Product code AK-EV-05
- Product type AC/DC adapter
- Supply voltage 100-240 V
- Power consumption < 2.5 A
- Efficiency > 80 %
- Output voltage 54.6 V
- Output amperage 2 A
- Outlet cord length 1 m

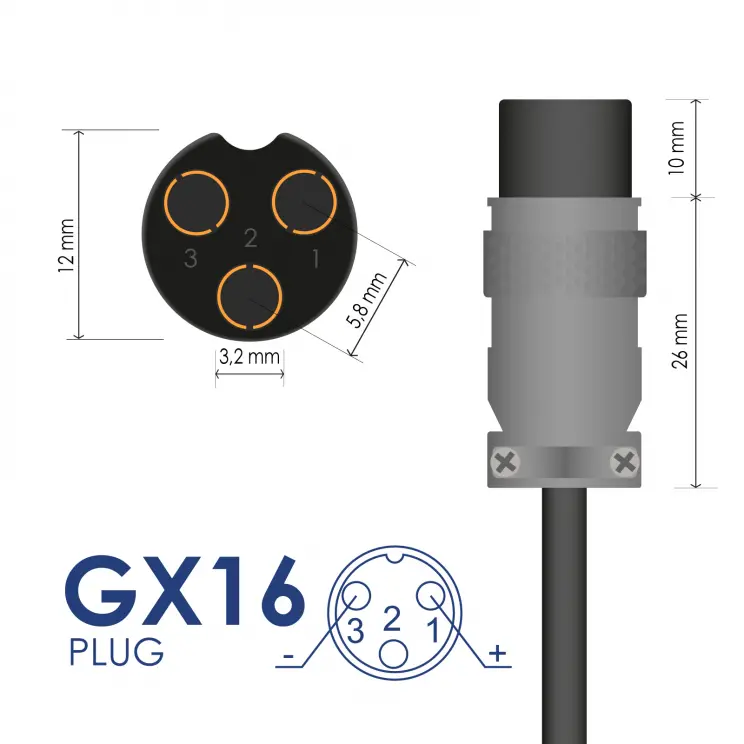

- Output connector GX16 12 mm (f)
- Maximum power 110 W
- Power inlet IEC C8
- Mechanical switch None
- Ground wire None (II protection class)
- IP Rating IP20
- OVP Yes
- OCP Yes
- OPP Yes
- SCP Yes
- Ferrite filter None
- Power cable included None
- Material ABS
- Product color Black
- Backlight color Bicolor diode
- Display None
- MTBF 10000 h
- Package EcoBox
- Product size (L x W x H) 172 x 73 x 37 mm
- Package size (L x W x H) 190 x 92 x 38 mm
- Net weight 459 g
- Gross weight 531 g
- CE compatibility Yes
- RoHS compatibility Yes
- REACH compatibility Yes
- EAN code 5901720135926
- Warranty 24 months
