Description

The Akyga® AK-CA-73 controller is a real treat for fans of glass enclosures. It will satisfy everyone, who wants his unusual set to impress with its appearance. The controller allows the user to take control over ten fans. You can choose the visual effects and change the fan parameters according to your individual needs. This is all possible thanks to the included remote control. With its help, all fans and strips connected to the controller can be controlled simultaneously:

  • switch the LED backlight on or off,
  • adjust the brightness level of the RGB LEDs, which are up to 10,
  • change the lighting mode from among dozens of predefined possibilities,
  • choose one of the 12 available backlight colours
  • set the speed of fans



This 12-port hub allows you to connect up to 10 RGB fans and 2 addressable LED strips simultaneously. Thus, you can be sure that you will not run out of ports to connect all fans in your case. Whether in a smaller ATX case or in a much bigger gaming case. Furthermore, the controller is equipped with a port that can be connected to the SW connector of the PC case. Thanks to this, the unique lighting mood can be created when the PC is switched on. Furthermore, the device remembers the last settings and continues to light up as before after power-up.

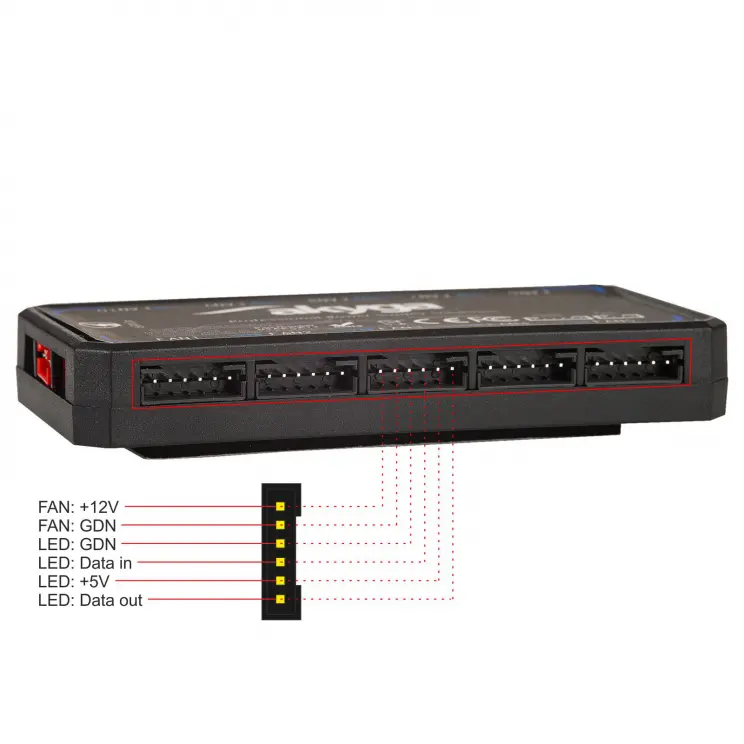

We guarantee full compatibility of the adapter only with Akyga AW-12D-RGB fans. If fans of other brands are used, please check the pinout of the controller before connecting them.

Features
  • Product code AK-CA-73
  • Product type PC case accesories
  • Supply voltage Molex 12 V/5 V
  • Power consumption max. 10 A
  • Output voltage 12 V for Fan, 5 V for LED
  • Maximum energy load 4.8 A (max. 0.4 A per fan / LED strip)
  • Fan adjustments Yes
  • Cable length 28 cm
  • The cable plug #1 Molex
  • The cable plug #2 JST-PH 4-pin
  • Remote control power supply CR2025 Battery
  • Frequency band of the remote control 433.92 MHz
  • Material ABS
  • Product color Black
  • Temperature 5 - 60 °C
  • Package UniBag
  • Product size (L x W x H) 92 x 45 x 16 mm
  • Package size (L x W x H) 174 x 245 x 17 mm
  • Net weight 62 g
  • Gross weight 66 g
  • CE compatibility Yes
  • RoHS compatibility Yes
  • REACH compatibility Yes
  • Included accesories LED Remote control
  • EAN code 5901720136084
  • Warranty 24 months
