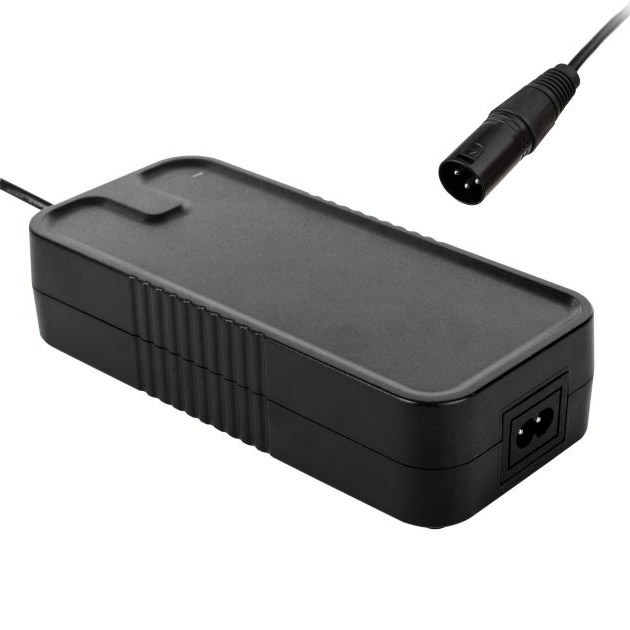

Akyga® AK-EV-13 is a charger for electric bicycles. It has a high-quality 3-pin XLR plug, also called a Cannon. This plug is often used in professional audio equipment, industrial machines and electric vehicles. You can use it to charge e-bikes and electric scooters from brands such as Giant, Koga or Sparta, among others. In addition, the power supply delivers 42 V/4 A, which makes charging a lithium-ion battery in an e-vehicle much shorter than with a conventional 2 A charger. It is recommended to use it to charge vehicles equipped with a 36 V battery. An undoubted advantage of the charger is that it does not have a permanently attached power cable. This allows you to adapt the charger to your own needs. As a result, when travelling abroad you don't need to buy another power pack, you just need to take the right cable that fits your country's power socket with you.
- Product code AK-EV-13
- Product type AC/DC adapter
- Supply voltage 100-240 V
- Power consumption < 2.5 A
- Efficiency > 80 %
- Output voltage 42 V
- Output amperage 4 A
- Outlet cord length 1 m
- Output connector Cannon (3 DIN) XLR (m)
- Maximum power 168 W
- Power inlet IEC C8
- Mechanical switch None
- Ground wire None (II protection class)
- IP Rating IP20
- OVP Yes
- OCP Yes
- OPP Yes
- SCP Yes
- Ferrite filter None
- Power cable included None
- Material ABS
- Product color Black
- Backlight color Bicolor diode
- Display None
- MTBF 10000 h
- Package EcoBox
- Product size (L x W x H) 180 x 80 x 40 mm
- Package size (L x W x H) 220 x 120 x 50 mm
- Net weight 695 g
- Gross weight 780 g
- CE compatibility Yes
- RoHS compatibility Yes
- REACH compatibility Yes
- EAN code 5901720136947
- Warranty 24 months
