LCD panel 5.25" AK-CA-25

  • Product code AK-CA-25
  • Product type PC case accesories
  • Format 5.25"
  • Number of channels 1
  • Regulation range 5-100%
  • Regulation step Gradual
  • Supported sensors 1
  • Installation location Drive Bay 5.25"
  • Number of switches 3
  • Supply voltage 12 V
  • Output voltage range 4.8 - 12 V
  • Mechanical switch None
  • Power supply connector Molex
  • Fan adjustments Automatic or manual
  • Cable length 30 cm
  • The cable plug #1 1 x 4-pin ( 3-pin )
  • Material ABS
  • Product color Black
  • Backlight color Blue
  • Display Yes
  • Temperature 5 - 50 °C
  • Package EcoBox
  • Product size (L x W x H) 146 x 78 x 42 mm
  • Package size (L x W x H) 215 x 139 x 45 mm
  • Net weight 141.8 g
  • Gross weight 211.9 g
  • CE compatibility Yes
  • FCC compatibility Yes
  • RoHS compatibility Yes
  • REACH compatibility Yes
  • EAN code 5901720131638
  • Warranty 24 months

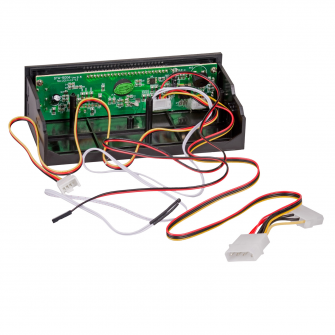

Akyga® AK-CA-25 is a LCD panel designed for installation in 5.25" bay, which is a great accessory for every computer case.

It allows for manual or automatic, smooth adjustment of fan speed in the range from 5 to 100%. Manual speed control mode allows advanced users to have full control over the cooling intensity of computer components and adapt it to current needs. The detailed LCD display shows the current speed level and the temperature at the location of the heat sensor. The panel is equipped with an alarm system warning against excessive temperature rise - just determine the limit temperature level and the module will inform when it is exceeded.

The 30 cm long cable allows free arrangement of wires inside.
