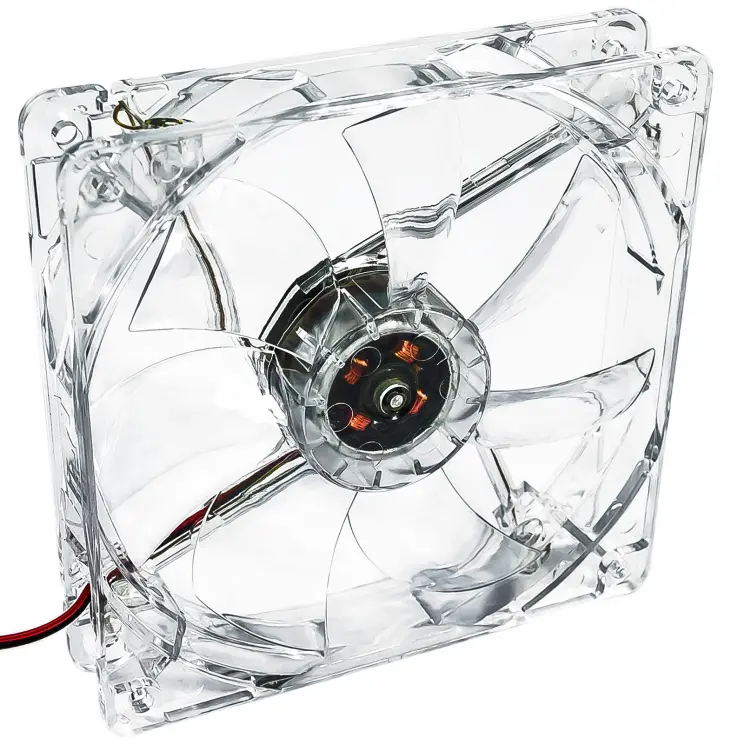

Fan 120mm MOLEX 4 LED green AW-12A-BG

  • Product code AW-12A-BG
  • Product type Fan
  • Supply voltage 12 V
  • Power consumption < 0.1 A
  • Power supply connector Molex
  • Fan size 120 mm
  • Bearing type Plain
  • Number of blades 7 pcs
  • Fan speed 1000 rpm
  • Maximum air flow 66 m3/h
  • Maximum noise level 20 dB
  • Mounting hole spacing 104.8 mm
  • Cable length 30 cm
  • Material ABS
  • Product color Transparent
  • Number of backlight diodes 4
  • Backlight color Green
  • MTBF 30000 h
  • Package UniBag
  • Product size (L x W x H) 120 x 120 x 25 mm
  • Package size (L x W x H) 260 x 130 x 26 mm
  • Net weight 84.4 g
  • Gross weight 90.3 g
  • CE compatibility Yes
  • RoHS compatibility Yes
  • REACH compatibility Yes
  • EAN code 5901720132109
  • Warranty 24 months

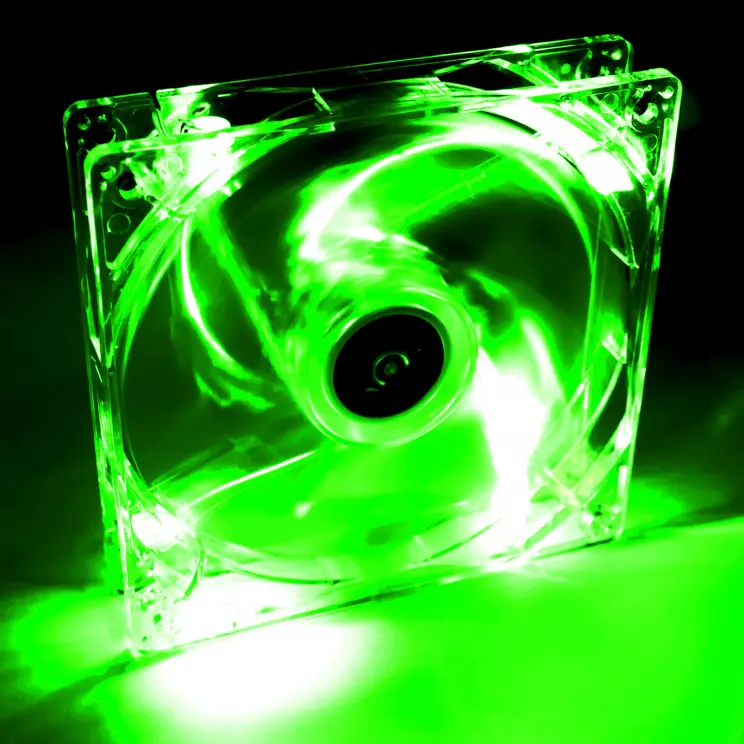

Fan Akyga® AW-12A-BG with a diameter of 12 cm illuminated by green LEDs. The fan dedicated to ATX cases, is characterized by high quality, quiet operation (max. 20dB) and an affordable price. It is equipped with a Molex connector, thanks to which it can be easily connected to any computer power supply with this connector.
