Description

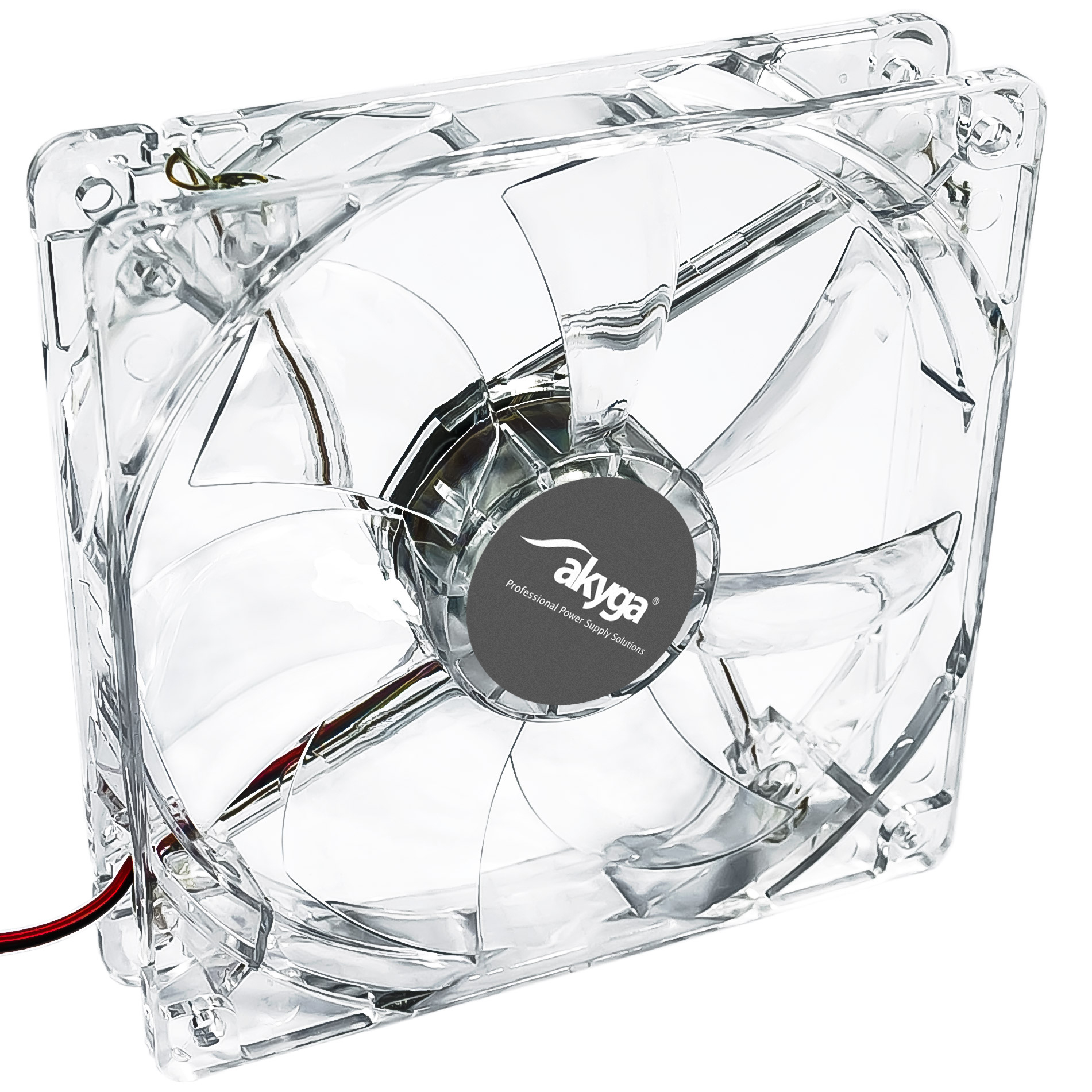

Akyga® AW-12A-WH is a 12 cm diameter fan illuminated with white LEDs. The fan dedicated to ATX cases, is characterized by high quality, quiet operation (max. 20dB) and an affordable price. It is equipped with a Molex connector, so it can easily be connected to any computer power supply with the same connector. The fan does not contain mounting screws.

Features
  • Product code AW-12A-WH
  • Product type Fan
  • Supply voltage 12 V
  • Power consumption < 0.1 A

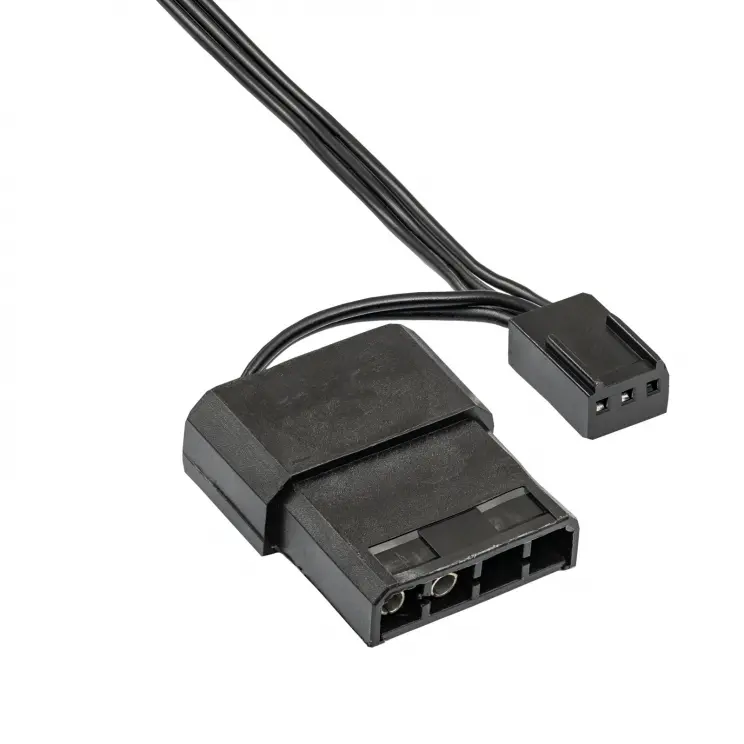

  • Power supply connector Molex
  • Fan size 120 mm
  • Bearing type Plain
  • Number of blades 7 pcs
  • Fan speed 1000 rpm
  • Maximum air flow 66 m3/h
  • Maximum noise level 20 dB
  • Mounting hole spacing 104.8 mm
  • Cable length 30 cm
  • Material ABS
  • Product color Transparent
  • Number of backlight diodes 4
  • Backlight color White
  • MTBF 30000 h
  • Package UniBag
  • Product size (L x W x H) 120 x 120 x 25 mm
  • Package size (L x W x H) 265 x 175 x 27 mm
  • Net weight 68.3 g
  • Gross weight 79.8 g
  • CE compatibility Yes
  • RoHS compatibility Yes
  • REACH compatibility Yes
  • Included accesories None
  • EAN code 5901720133441
  • Warranty 24 months
