Description

Akyga® AK-P3-650 ATX power supply Pro series 650W, compatible with ATX 2.31 standard is a high quality device, which works well in complex configurations requiring high efficiency. The power supply has 5 SATA connectors, two MOLEX connector, mini-MOLEX connector, PCI 6-pin connector, PCI-E 6+2-pin connector, EPS 4+4-pin and a universal 24-pin motherboard connector. An important feature are longer cables that allow easy installation in bottom-mounting cases. A silent and backlit with RGB diodes 12 cm  fan with chromed grill provide efficient cooling. Manual on/off switch allows for safe power cut off without the need of disconnecting the network cord and switch to change the color of the fan backlight. High efficiency and stable operation of the power supply affects the reliability of all computer components.

Several important protectors (OVP, OCP, OPP, OTP, SCP) and PFC filter protect and prevent main computer parts from damage and stabilize the operation of the power supply so that it works without any unwanted interference.

1.5 m power cord included.

Features
  • Product code AK-P3-650
  • Product type Computer power supply
  • Format ATX 2.31
  • Series Pro
  • Supply voltage 230 V
  • Power consumption < 5 A
  • Efficiency > 70 %
  • 80 PLUS compatibility No
  • Current on the +3.3V rail 17 A
  • Current on the +5V rail 18 A
  • Maximum load on +3.3V and +5V line 140 W
  • Current on the +12V rail 42 A
  • Maximum load on 12V line 504 W
  • Maximum power 650 W
  • Mainboard Power Connector 24-pin
  • Power connector ATX12V P4 None
  • Power connector EPS12V 8 pin 1 pc ( 4 + 4-pin )
  • Power connector PCI-E 6 pin 1 pc
  • Power connector PCI-E 6+2 pin 1 pc
  • Power connector PCI-E 8 pin None
  • Molex connector 2 pcs
  • Mini-Molex connector 1 pc
  • SATA connector 5 pcs
  • Modular power supply No
  • PFC filter Passive
  • Mechanical switch Yes
  • Ground wire Yes
  • OVP Yes
  • OCP Yes
  • OPP Yes
  • OTP Yes
  • SCP Yes
  • UVP None
  • Power supply connector IEC C14
  • Fan size 120 mm
  • Fan adjustments Automatic
  • Cable length 30 - 60 cm
  • Power cable included Yes
  • Material Galvanized steel
  • Product color Black
  • Backlight color RGB
  • MTBF 100000 h
  • Temperature 5 - 50 °C
  • Package EcoBox
  • Product size (L x W x H) 140 x 150 x 85 mm
  • Package size (L x W x H) 270 x 190 x 95 mm
  • Net weight 1.47 kg
  • Gross weight 1.57 kg
  • CE compatibility Yes
  • FCC compatibility No
  • RoHS compatibility Yes
  • REACH compatibility Yes
  • Included accesories Cable AK-PC-01A
  • EAN code 5901720135094
  • Warranty 24 months

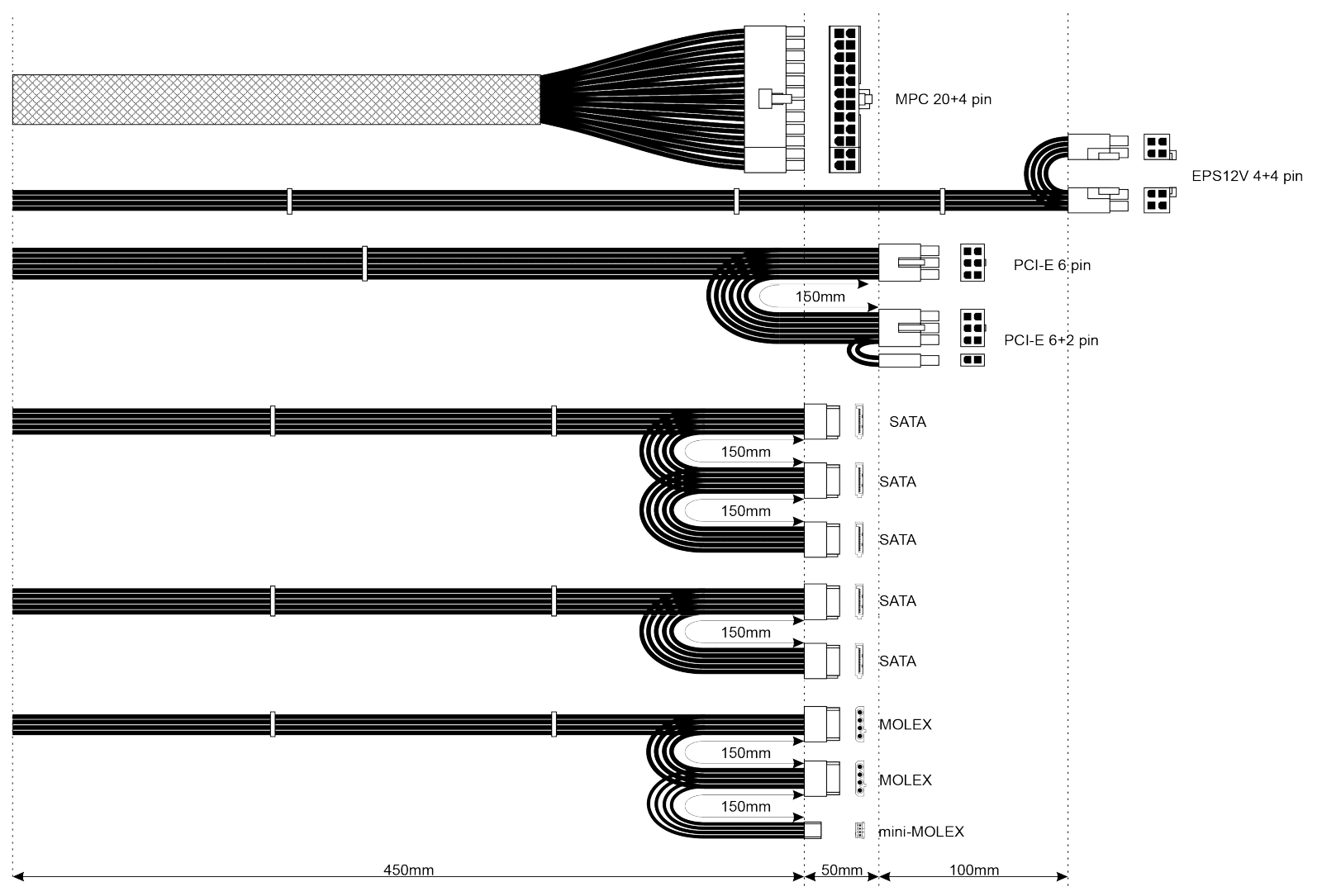

Cable map

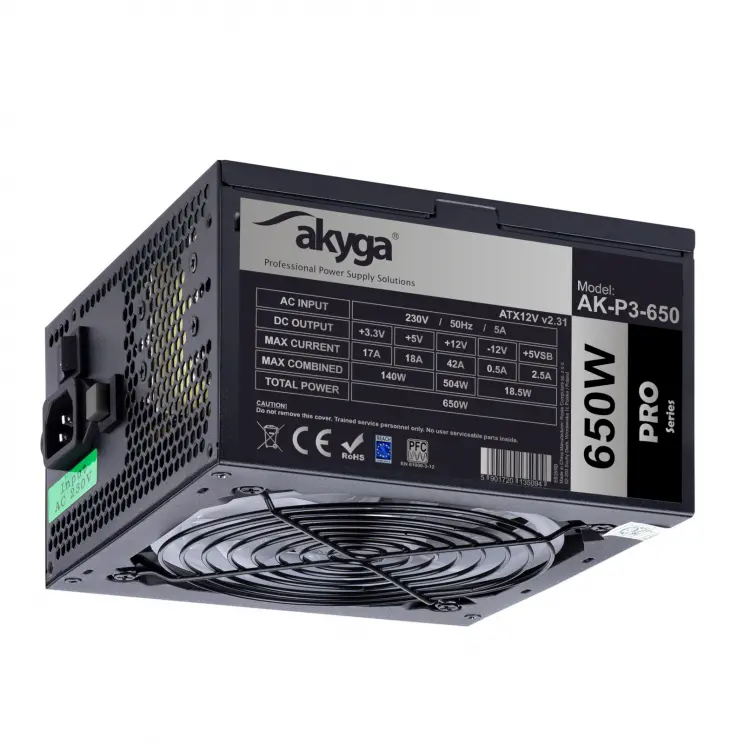

Nameplate
