Power Supply TFX AK-T1-250 250W 80+ Gold

  • Product code AK-T1-250
  • Product type Computer power supply
  • Format TFX
  • Series Ultimate
  • Supply voltage 230 V
  • Power consumption < 3 A
  • Efficiency > 80 %
  • 80 PLUS compatibility Yes
  • Current on the +3.3V rail 15 A
  • Current on the +5V rail 15 A
  • Maximum load on +3.3V and +5V line 80 W
  • Current on the +12V rail 16 A
  • Maximum load on 12V line 192 W
  • Maximum power 250 W
  • Power inlet IEC C14
  • Mainboard Power Connector 24-pin
  • Power connector ATX12V P4 1 pc
  • Power connector EPS12V 8 pin 1 pc ( 4 + 4-pin )
  • Power connector PCI-E 6 pin None
  • Power connector PCI-E 6+2 pin None
  • Power connector PCI-E 8 pin None
  • Molex connector 1 pc
  • Mini-Molex connector None
  • SATA connector 3 pcs
  • PFC filter Active
  • Ground wire Yes
  • OVP Yes
  • OCP Yes
  • OPP Yes
  • OTP Yes
  • SCP Yes
  • UVP Yes
  • Fan size 80 mm
  • Fan adjustments Automatic
  • Cable length 36 cm
  • Power cable included Yes
  • Material Galvanized steel
  • Product color Grey
  • MTBF 100000 h
  • Temperature 5 - 50 °C
  • Package Foil
  • Product size (L x W x H) 175 x 85 x 65 mm
  • Package size (L x W x H) 252 x 110 x 68 mm
  • Net weight 836.4 g
  • Gross weight 846.4 g
  • CE compatibility Yes
  • FCC compatibility No
  • RoHS compatibility Yes
  • REACH compatibility Yes
  • Included accesories Cable IEC C13 1 m
  • EAN code 5901720135612
  • Warranty 24 months

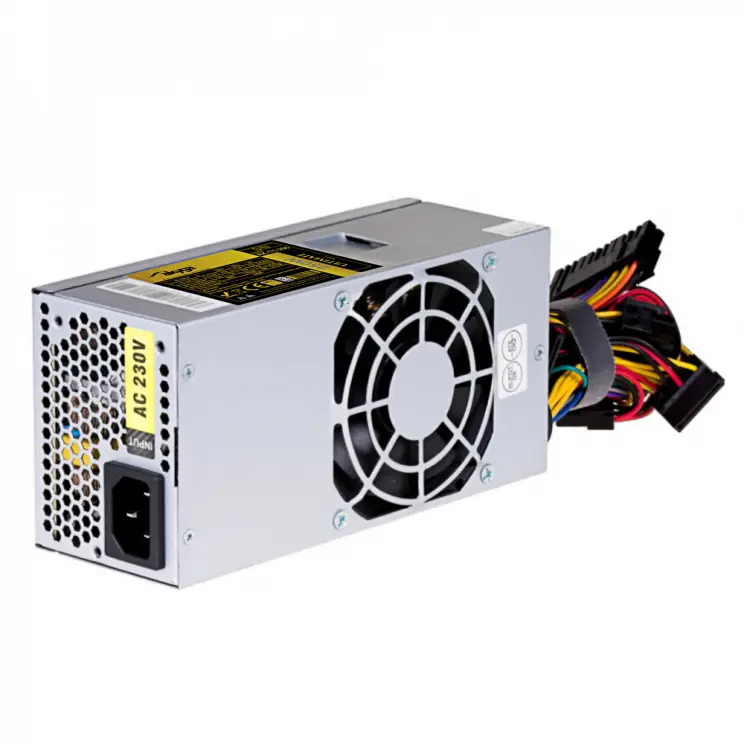

The Akyga® AK-T1-250 TFX power supply 250W is an advanced, compact power adapter dedicated to mini and media PC systems. It supports all the latest construction standards, ensuring high performance and stability.

The power supply features a 4-pin connector, MOLEX connector, 3 x SATA connector and universal 24-pin motherboard connector. A guarantee of high efficiency is the 80 PLUS® compatibility which ensures that at least 80% of energy provided by the power supply is received by computer’s components and a maximum of 20% of energy is lost in the form of heat. High efficiency allows effective supplying and so the stable operation of the power supply affects the reliability of all components of the computer. Effective cooling is provided by efficient, silent fan of 8 cm diameter. The power supply is ideal for small and medium-sized cases thanks to optimized 36 cm long set of cables. Product is made of durable galvanized steel.

An important aspect is the presence of several important protectors (OVP, OCP, OPP, OTP, SCP, UVP) and active PFC filter that protects and prevents motherboard, processor and other parts from damage and stabilize the operation of the power supply so that it works without any unwanted interference. The TFX AK-T1-250 power supply is a high quality product that meets the current requirements and corresponds to modern standards.
