• High efficiency guarantee – certified power supply with 80 PLUS Bronze standard
      • Actual power – the power supply provides 350 W of continuous power
      • Rich set of connectors – the product has a package of necessary plugs
      • Quiet operation – optimum operating temperature is ensured by an efficient 12 cm fan
      • Guaranteed reliability – the product has an extended warranty up to 36 months
    • A set of protections – the device is protected against damage by a number of protections
Features
  • Product code AK-U4-350
  • Product type Computer power supply
  • Format ATX 2.31
  • Series Ultimate
  • Supply voltage 230 V
  • Power consumption < 5 A
  • Efficiency > 85 %
  • 80 PLUS compatibility Yes
  • 80 PLUS certificate Bronze
  • Current on the +3.3V rail 10 A
  • Current on the +5V rail 10 A
  • Maximum load on +3.3V and +5V line 85 W
  • Current on the +12V rail 21 A
  • Maximum load on 12V line 252 W
  • Maximum power 350 W
  • Mainboard Power Connector 24-pin
  • Power connector ATX12V P4 None
  • Power connector EPS12V 8 pin 1 pc ( 4 + 4-pin )
  • Power connector PCI-E 6 pin None
  • Power connector PCI-E 6+2 pin 1 pc
  • Power connector PCI-E 8 pin None
  • Molex connector 2 pcs
  • Mini-Molex connector 1 pc
  • SATA connector 4 pcs
  • Modular power supply No
  • PFC filter Active
  • Mechanical switch Yes
  • Ground wire Yes
  • OVP Yes
  • OCP Yes
  • OPP Yes
  • OTP Yes
  • SCP Yes
  • UVP Yes
  • Power supply connector IEC C14
  • Fan size 120 mm
  • Fan adjustments Automatic
  • Cable length 40 - 55 cm
  • The cable plug #1 Hybrid standard C/E/F ( CEE 7/7 )
  • The cable plug #2 IEC C13
  • Power cable included Yes
  • Material Galvanized steel
  • Product color Black
  • MTBF 100000 h
  • Temperature 5 - 50 °C
  • Package EcoBox
  • Product size (L x W x H) 140 x 150 x 85 mm
  • Package size (L x W x H) 222 x 155 x 95 mm
  • Net weight 1.2 kg
  • Gross weight 1.43 kg
  • CE compatibility Yes
  • FCC compatibility No
  • RoHS compatibility Yes
  • REACH compatibility Yes
  • Included accesories Cable IEC C13 1 m
  • EAN code 5901720133472
  • Warranty 36 months

Efficient power supply with 80+ certification

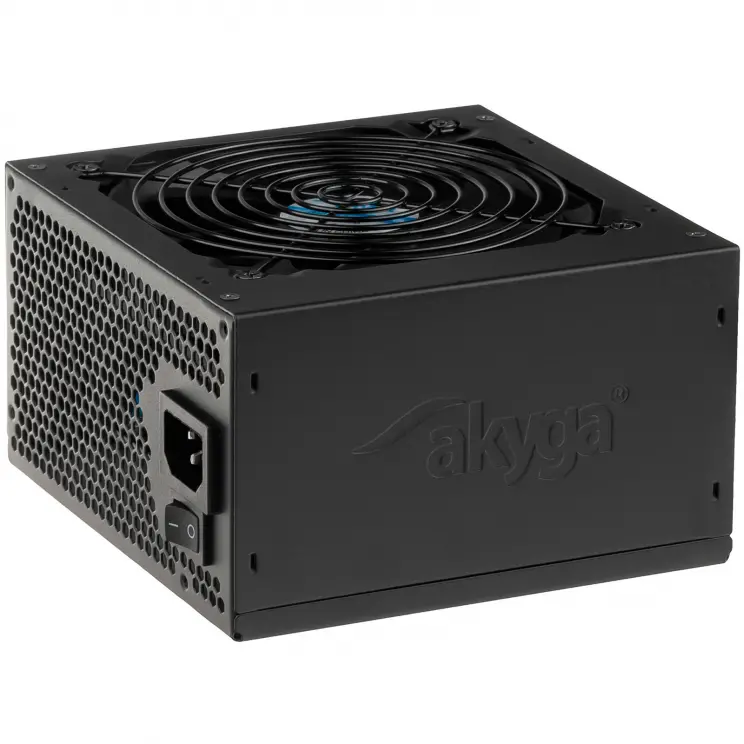

The AK-U4-350 Ultimate series power supply is a power source for standard desktop PC configurations. It is ideal for both office systems and typical home solutions.

Unrestricted operation

Max power
350 W

Fan dimensions
12 cm

Cable length
40-55 cm

Warranty
36 months

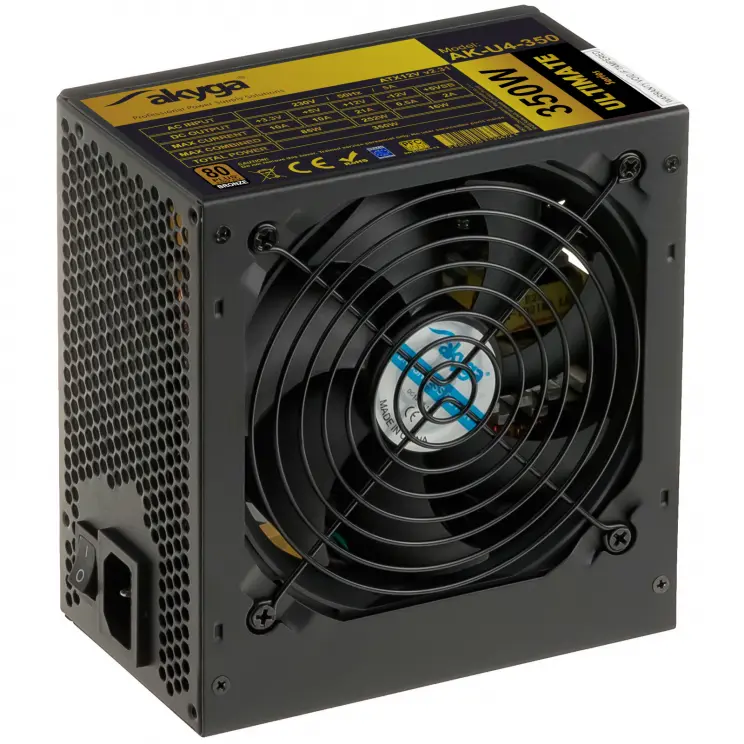

The AK-U4-350 power supply unit power supply unit is highly efficient, which makes it more effective and reduces energy consumption. The product is characterized by effective cooling during operation at the highest speed, which is solved by a built-in 120 mm fan. The efficiency of the fan is ensured by a controller that controls the speed depending on the temperature of the components. Moreover, long power cables allow free installation in bottom-mounted cases. This, when properly positioned, increases the cooling performance inside the computer case. The reliability of the power supply is ensured by an extended 36 months warranty.

High efficiency guaranteed

The high efficiency of the power supply is guaranteed by the 80 PLUS® Bronze. standard compliance. The certificate ensures that at least 85% of electricity is transferred to the powered components. This has a direct impact on energy savings and lower heat output.

Reliable protection

The power supply is equipped with a number of protections and an active PFC filter. They provide protection, prevent components from damage and stabilize the power supply, so it runs without unwanted interference.

OVP protection — Protects the power supply against too high a voltage on the output line. It is activated when the voltage increases by 15% from the nominal value.

OCP protection — Protects computer components from too high output current. In case of an overload, one of the lines is automatically switched off.

OPP protection — Protects against power supply overload.

OTP protection — Protects against overheating of the PSU caused by overload and insufficient air circulation.

UVP protection — Protects against too low voltage on the output lines.

SCP protection — Protects against short circuit.

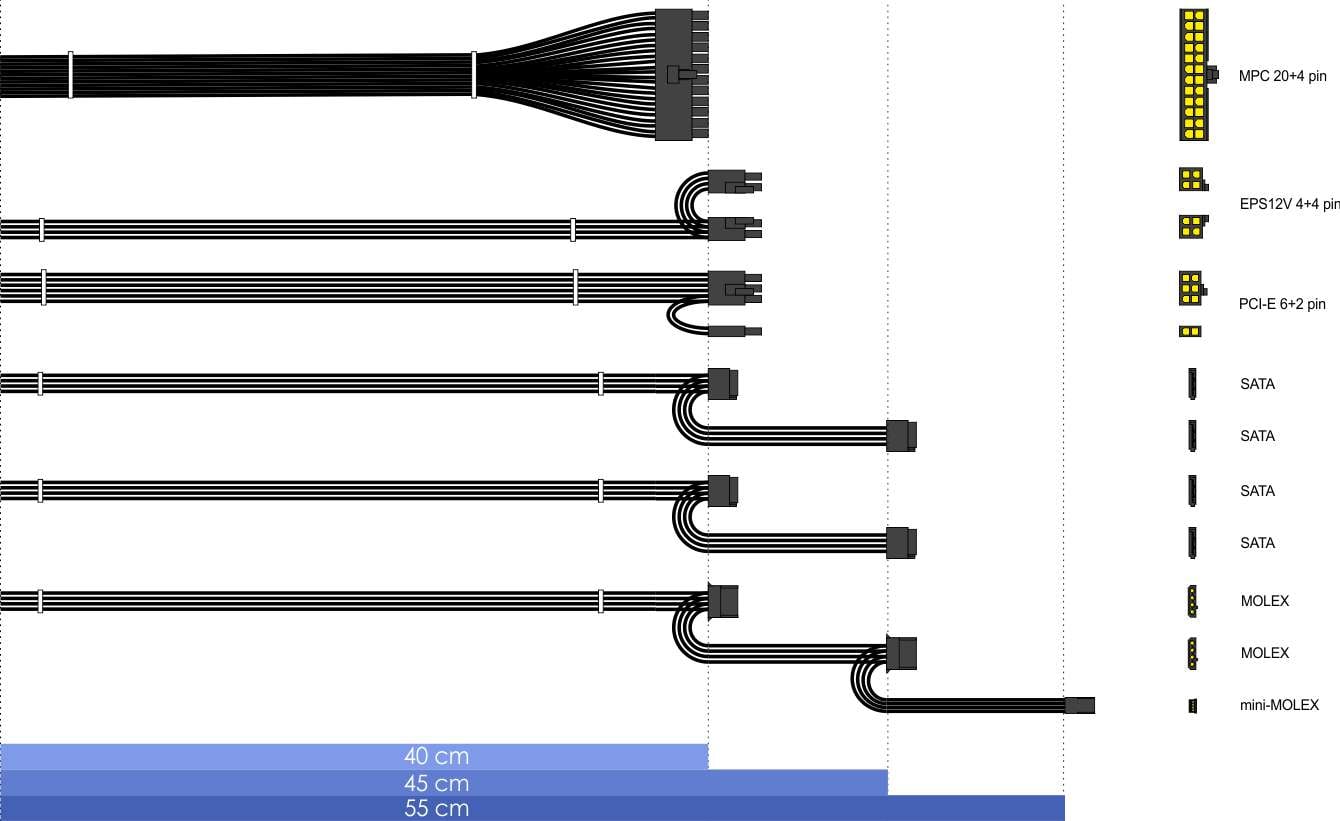

Variety of connectors

EPS12V connector
4+4 PIN

PCI Express connector
6+2 PIN

SATA conectors
4 pcs

Molex conectors
2 pcs

The power supply is supplied with a wide selection of plugs. In addition to the universal MPC 24-pin connector, the set includes two MOLEX connectors, four SATA connectors for Serial ATA HDDs and optical discs, and one mini-MOLEX connector. Additionally, the set includes PCI-E 6+2-pin connector for connecting graphics cards and one EPS12V 4+4-pin connector for powering motherboards. In addition, the power supply has a manual switch that allows the user to safely cut off the power supply without having to unplug the power cord from the mains.

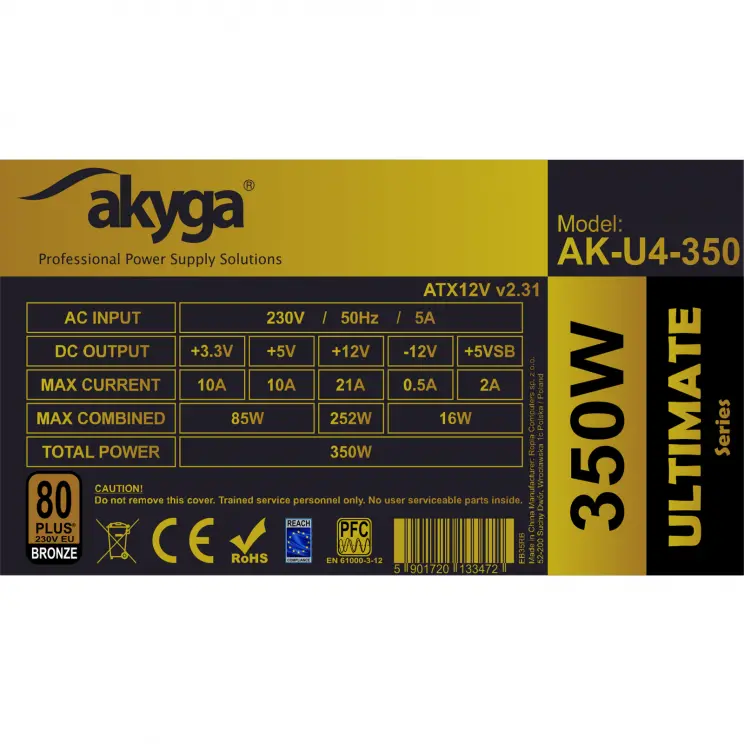

Nameplate
