Description

Akyga® AK-B1-700BE is a power supply from the Basic series with 700W of power. The device is one of the basic ATX Akyga power supplies used to power desktop computers.

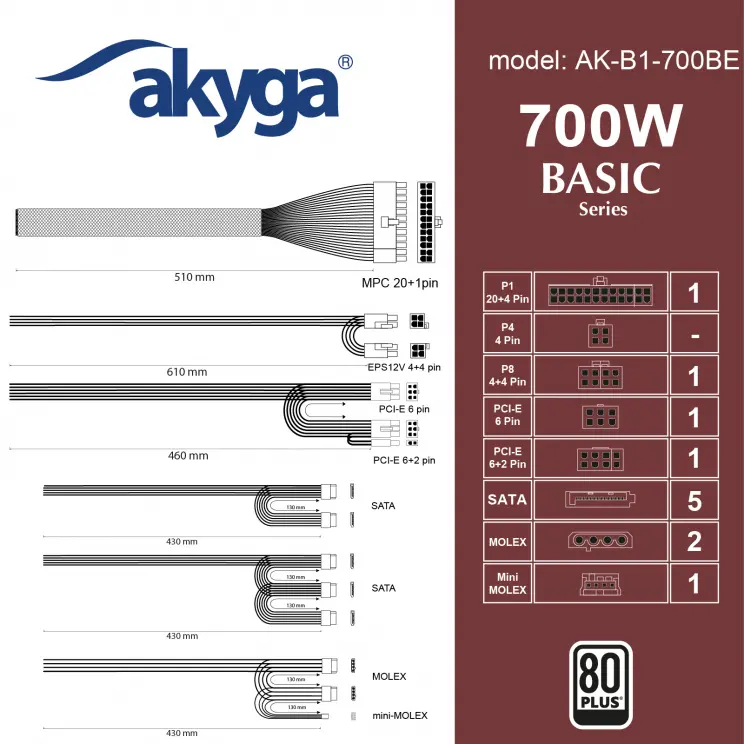

Akyga ATX power supply is equipped with 5 SATA connectors, 2 MOLEX connectors, mini-MOLEX connector, PCI-E 6-pin connector, PCI-E 6 + 2-pin connector, EPS12V 4 + 4-pin connector and a universal 24-pin connector for motherboards. The device supports ATX12V version 2.31.

The product has a built-in, silent fan with a diameter of 12 cm ensuring efficient cooling of the power supply. It is also equipped with a manual switch that allows the user to safely disconnect the device from the electrical circuit, without disconnecting the power cord from the power outlet.

The product allows you to power your computer efficiently, while a number of protections (OVP, OCP, OPP, OTP, SCP) and a PFC filter protect it and prevent computer malfunctions and failures. As a result, the power supply operation is stable and runs smoothly.

The product is available in black.

Features
  • Product code AK-B1-700BE
  • Product type Computer power supply
  • Format ATX 2.31
  • Series Basic
  • Supply voltage 230 V
  • Power consumption < 5 A
  • Efficiency > 70 %
  • 80 PLUS compatibility No
  • 80 PLUS certificate None
  • Current on the +3.3V rail 35 A
  • Current on the +5V rail 38 A
  • Maximum load on +3.3V and +5V line 300 W
  • Current on the +12V rail 32 A
  • Maximum load on 12V line 384 W
  • Maximum power 700 W
  • Mainboard Power Connector 24-pin
  • Power connector ATX12V P4 None
  • Power connector EPS12V 8 pin 1 pc ( 4 + 4-pin )
  • Power connector PCI-E 6 pin 1 pc
  • Power connector PCI-E 6+2 pin 1 pc
  • Power connector PCI-E 8 pin None
  • Molex connector 2 pcs
  • Mini-Molex connector 1 pc
  • SATA connector 5 pcs
  • Modular power supply No
  • PFC filter Passive
  • Mechanical switch Yes
  • Ground wire Yes
  • OVP Yes
  • OCP Yes
  • OPP Yes
  • OTP Yes
  • SCP Yes
  • UVP None
  • Power supply connector IEC C14
  • Fan size 120 mm
  • Fan adjustments Automatic
  • Cable length 30 - 60 cm
  • Power cable included No
  • Material Galvanized steel
  • Product color Black
  • MTBF 100000 h
  • Temperature 5 - 50 °C
  • Package EcoBox
  • Product size (L x W x H) 160 x 150 x 85 mm
  • Package size (L x W x H) 260 x 180 x 95 mm
  • Net weight 1.26 kg
  • Gross weight 1.33 kg
  • CE compatibility Yes
  • FCC compatibility No
  • RoHS compatibility Yes
  • REACH compatibility Yes
  • EAN code 5901720135797
  • Warranty 24 months
