  • Compatibility  the charger fits electric cars imported from United States, with Type 1 connector
  • LCD display provides reading information about current state of charging and allows insight into the work of the charger
  • Current adjustment  allows to change the current to: 6, 8, 10, 13 and 16 A, depending on the needs and possibilities of the electrical installation
  • Resistance  the device is characterized by high resistance to mechanical damage due to falling or pressure
  • Simple and convenient use  long 5-metre cable and a special mounting in the casing make it easier to use the charger
  • High-quality protection  the device is equipped with special safety features to ensure high preformanece and faliure-free operation
Features
  • Product code AK-EC-15
  • Product type Electric Car Accessory
  • Hole for padlock No
  • Supply voltage 110-250 V / 50/60 Hz
  • Number of phases 1 phase
  • Maximum current 32 A
  • Maximum power 7.2 kW
  • Ground wire Yes
  • Flame resistance UL94V-0
  • IP Rating IP54
  • OVP Yes
  • OCP Yes
  • OPP Yes
  • OTP Yes
  • SCP Yes
  • Cable length 5 m
  • The cable plug #2 Type1
  • Wire gauge 3 x 6 mm2 + 2 x 0.75 mm2
  • Isolation material TPE
  • Material ABS
  • Product color Blue
  • Display Yes
  • MTBF 10000 h
  • Temperature -30 / +50 °C
  • Package Protective bag
  • Product size (L x W x H) 5000 x 150 x 85 mm
  • Package size (L x W x H) 380 x 380 x 100 mm
  • Net weight 2.8 kg
  • Gross weight 3.15 kg
  • CE compatibility Yes
  • FCC compatibility Yes
  • RoHS compatibility Yes
  • REACH compatibility Yes
  • Included accesories AK-AC-02
  • EAN code 5901720136855
  • Warranty 24 months

Charging your car has never been so easy!

Akyga® AK-EC-15 charger is a top-class, modern and practical EVSE device. It was designed for electric cars with Type 1 socket, which mainly include vehicles imported from America. It is worth knowing that at the moment this connector is becoming less and less popular on the old continent. Therefore, it may be necessary to have this type of accessory.

Charging without limits

Connector
Type 1

Plug 230 V
CEE 3-pin

Rated current
6 A / 10 A / 16 A / 20 A / 32 A

Charger length
5 m

The AK-EC-15 charger is a response to the needs of electric vehicle users. The built-in LED display enables you to monitor the charging parameters. This gives you an overview of the continuous charging process of your vehicle. The long 5 metre cable will allow free access to the charging socket in almost any situation. This way, you can be sure that the type 1 plug will reach your car without any problems. What's more, the charger is equipped with an IEC 60309 plug, which is used to power high-powered devices. This will allow you to quickly charge your car with a current of 32 A, giving you up to 7.2 kW of power. In order to ensure that the charging process runs smoothly, it is important to have access to a robust electrical installation and correctly fitted safety devices.

Modern ControlBox

The charger has a ControlBox, which allows you to view and adjust the current. It allows you to follow charging information, such as the temperature of the charger and the time remaining to charge. In addition, below the display, there are buttons with which you can adjust the current. The panel offers as many as 5 current values to choose from: 6, 10, 16, 20 and 32 A, thanks to which you can be sure that your electric car will not draw more current than it should.

Safety above all

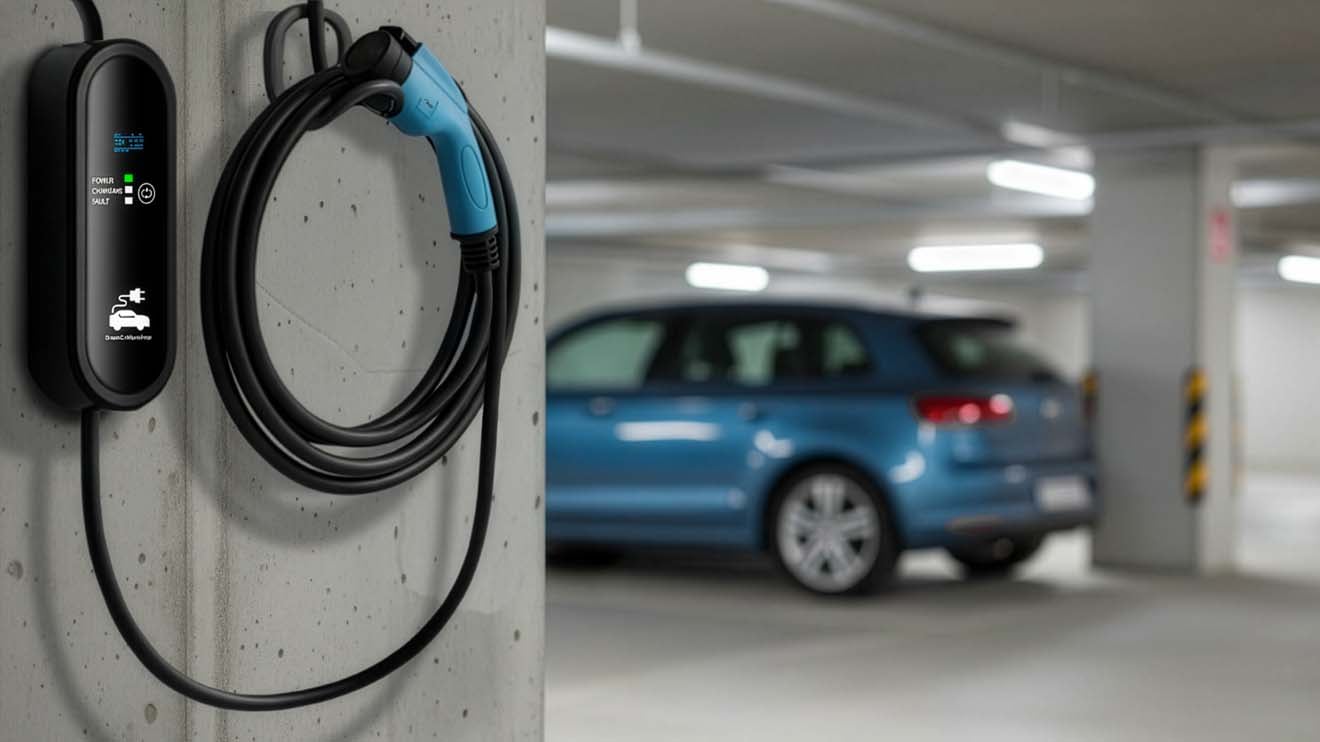

The charger has been equipped with necessary, high-class protections. This ensures trouble-free and efficient charging of your vehicle. The device also has a convenient handle on the back of the housing, which allows you to hang the charger, for example, on the wall of your garage.

Overcurrent protection. The charger will switch off if it detects an overload of the stabiliser.

Thermal protection protects against overheating of the power supply, which could result in damage.

Protection against overvoltage at the charger's output. Protects the device being charged from damage.

The built-in temperature sensor in the plug ensures safety and protects against the consequences of overheating the battery in the car. Thanks to a suitable controller, the device regulates the parameters so as to maintain the optimum temperature during the charging process.

Maximum durability

Fire resistance
UL94V-0

Adjustment
current

Degree of protection
IP54

Resistance
2t

In addition, the charger has been designed to withstand the harsh conditions specified by the IP54 sealing class. The materials from which it is made are extremely durable and resistant. Therefore it is not threatened by dirt or splashing. In addition, the plug has been protected by a plug, which protects the contacts against flooding or accidental damage.

Convenient cover

In addition to the previously mentioned handle located in the casing, each Akyga® AK-EC-15 charger comes with a transport bag. This is a very practical solution, which allows to keep order and provides additional protection for the charger's cables.

The product is suitable for charging the batteries of electric cars, such as:

    • Nissan Leaf
    • Nissan NV200 SE VAN
    • Citroen C-Zero
    • Fisker Karma
    • Ford Focus Electric
    • Ford C-Max Energi
    • Peugeot iOn
    • Peugeot Galicia
    • Opel Ampera
    • Chevrolet Volt
    • Smiths Edison VAN
    • Smiths Newton
    • Tata Indica Vista EV
    • Toyota Prius
    • Mistubishi I-Miev
    • Mitsubishi Outlander PHEV
    • Mia Electric Van
    • Mia Electric Car
    • Kia Soul
