Description

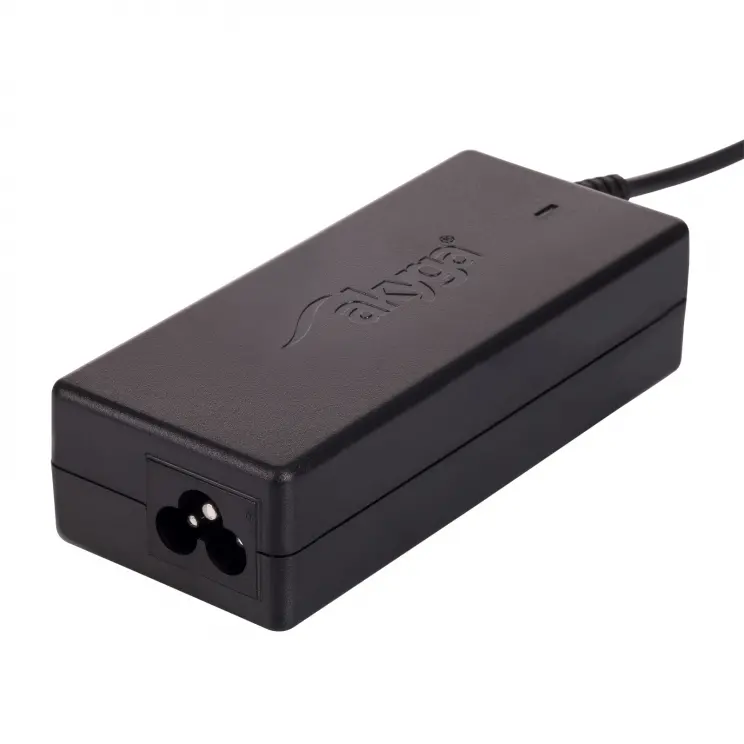

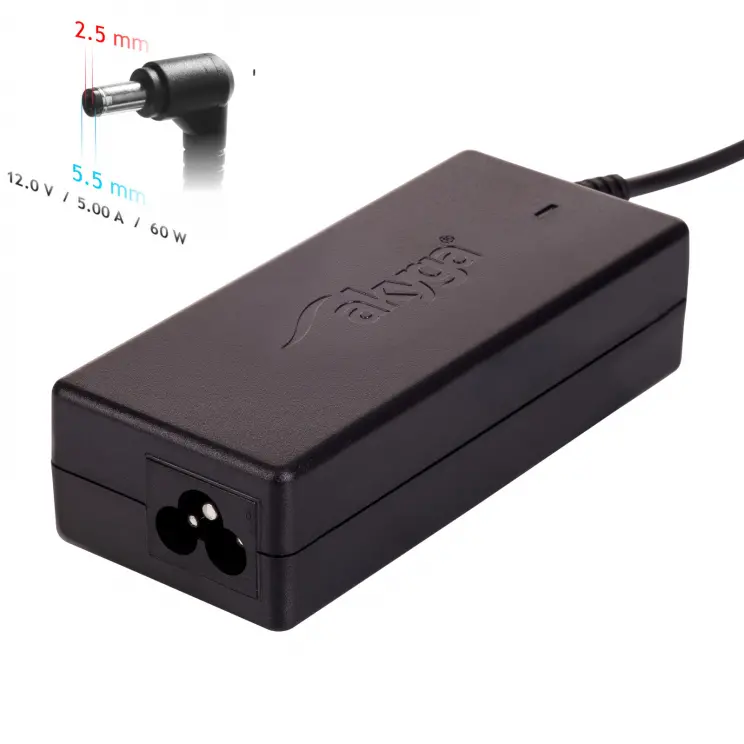

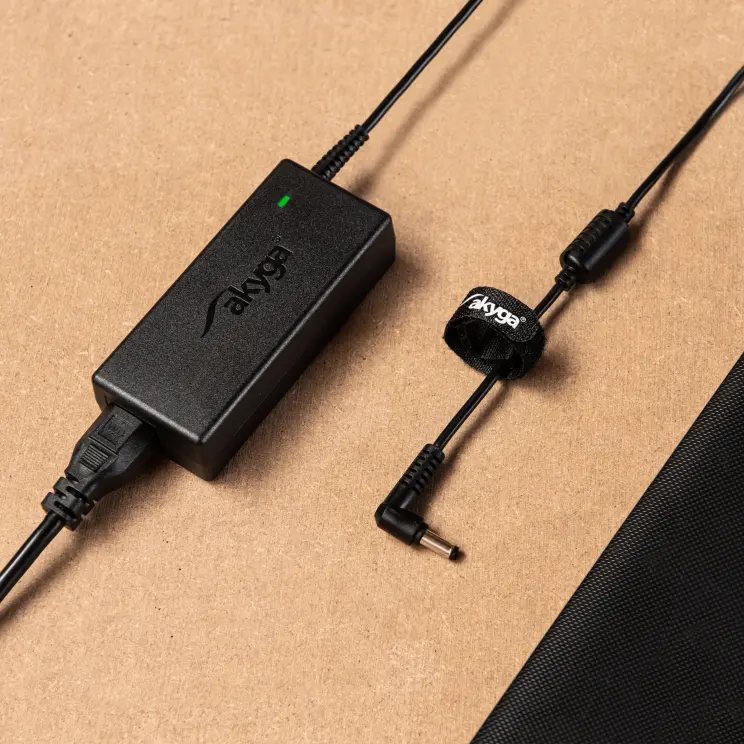

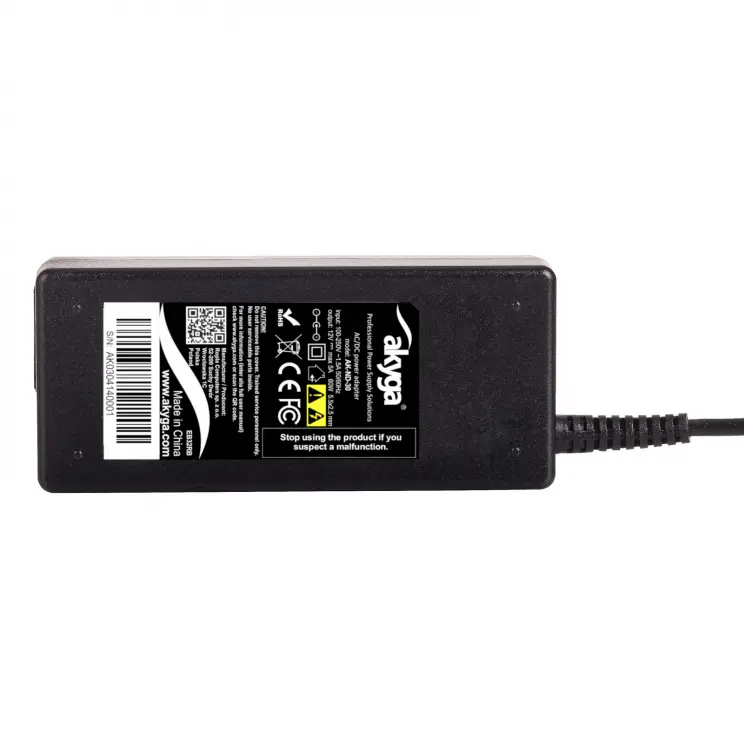

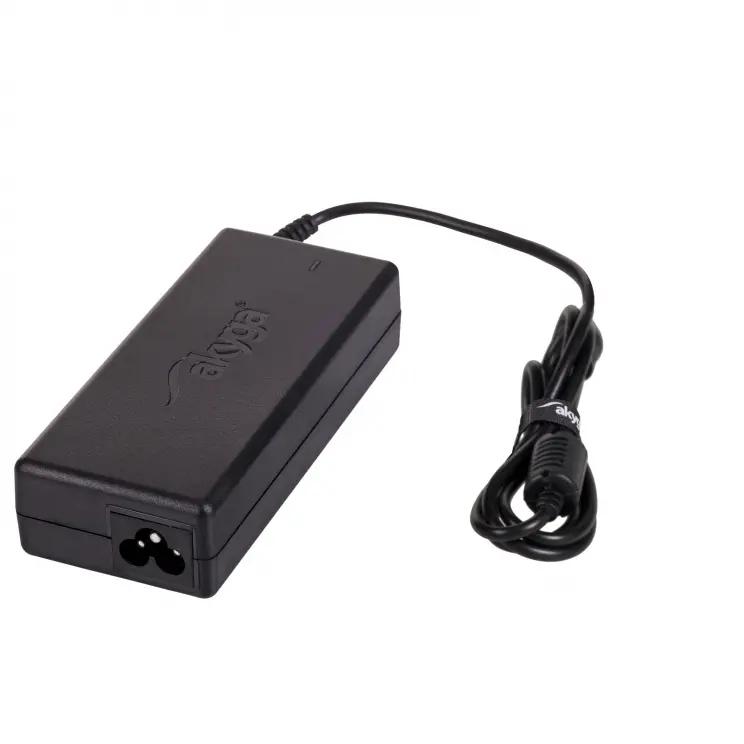

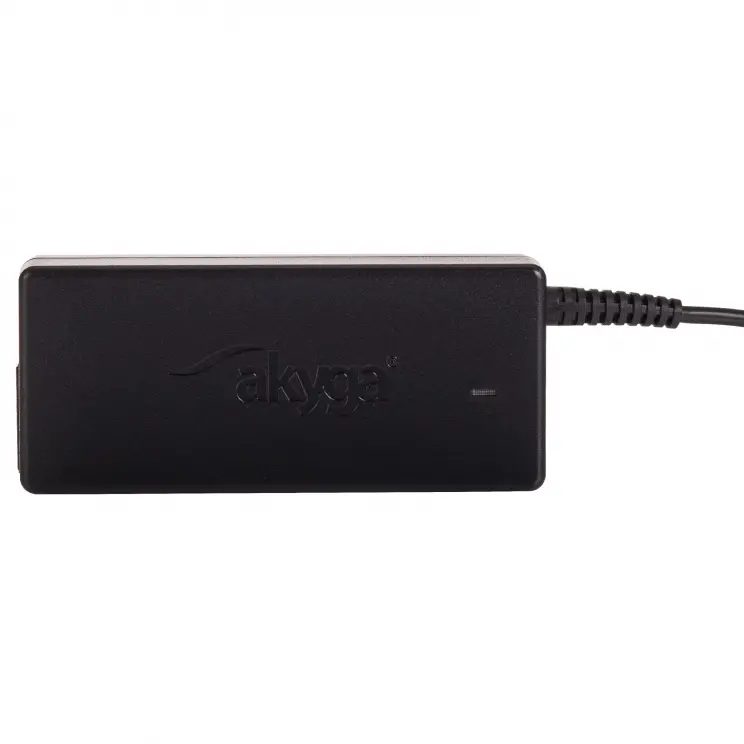

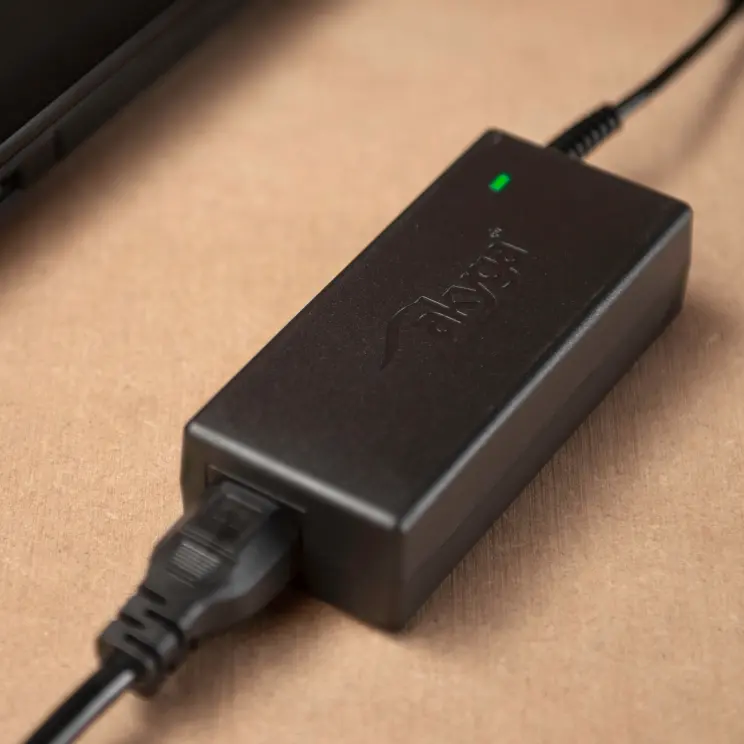

Akyga® AK-ND-30 is a notebook dedicated power supply for devices powered with 12V/5A, 60W power and 5.5*2.5 mm plug. It can also be used as a power source for LED strips and other devices requiring a constant voltage of 12 V (printers, scanners, monitors, routers).
The cord of the power adapter has been equipped with a high-quality ferrite core that prevents and protects devices from any possible mode currents and high frequency noise.

A set of protectors (OVP, OTP, OPP, SCP and OCP) guarantees 100% secure, stable work both powered device and the power supply. Additional safety for the equipment is provided by the soft start technology, which neutralizes the shock of the first stroke of current during the device startup.

All Akyga power supplies are provided in an environmentally friendly EcoBox.

We encourage you to use our notebook power adapter search engine.

Features
  • Product code AK-ND-30
  • Product type AC/DC adapter
  • Compatible with Mini PC, LED
  • Series Dedicated
  • Supply voltage 100-250 V
  • Power consumption < 1.5 A
  • Efficiency > 80 %
  • Output voltage 12 V
  • Output amperage 5 A
  • Outlet cord length 1.2 m

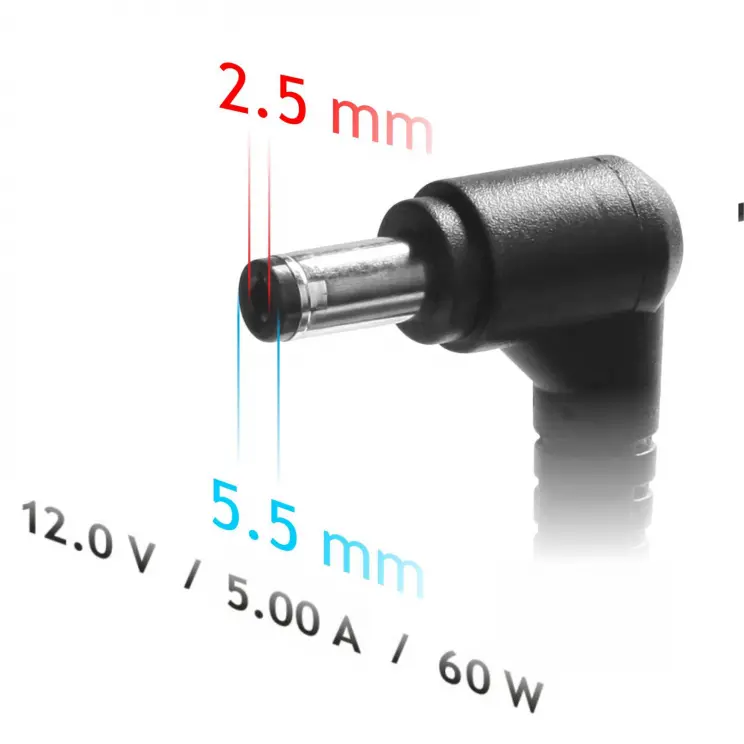

  • Output connector 5.5 x 2.5 mm
  • Maximum power 60 W
  • Power inlet IEC C6
  • Mechanical switch None
  • Ground wire Yes
  • Soft start Yes
  • OVP Yes
  • OCP Yes
  • OPP Yes
  • OTP Yes
  • SCP Yes
  • USB connector None
  • Power cable included No
  • Material ABS
  • Product color Black
  • Backlight color Green LED
  • Display None
  • MTBF 100000 h
  • Temperature 5 - 50 °C
  • Package EcoBox
  • Product size (L x W x H) 114 x 49 x 30 mm
  • Package size (L x W x H) 190 x 92 x 38 mm
  • Net weight 245 g
  • Gross weight 294 g
  • CE compatibility Yes
  • FCC compatibility Yes
  • RoHS compatibility Yes
  • REACH compatibility Yes
  • EAN code 5901720135070
  • Warranty 24 months
